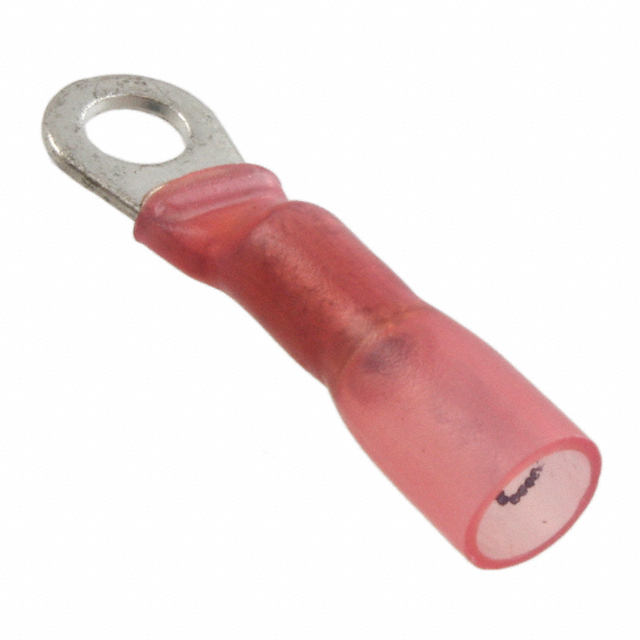

8-55846-2
Or copy the link below:
- Mfr.Part #
- 8-55846-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 18-22AWG #6 CRIMP
- Stock
- 735
- In Stock ：
- 735
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Packaging :
- Bulk
- Mounting Type :
- Free Hanging (In-Line)
- Published :
- 2010
- Insulation Diameter :
- 0.170 (4.32mm)
- Stud Diameter :
- 3.5052 mm
- Width - Outer Edges :
- 0.250 6.35mm
- Gender :
- FEMALE
- HTS Code :
- 8536.90.40.00
- Wire Gauge :
- 18-22 AWG
- ELV :
- Compliant
- Diameter - Inside :
- 1.42 mm
- Number of Holes :
- 1
- Factory Lead Time :
- 7 Weeks
- Pbfree Code :
- yes
- Stud/Tab Size :
- 6 Stud
- Lead Free :
- Lead Free
- Voltage - Rated AC :
- 300V
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Stud Size :
- M3.5
- Material - Insulation :
- Polyolefin
- Termination :
- Crimp
- Material Thickness :
- 760μm
- Wire Cross Section :
- 0.96 mm2
- Length :
- 31.7mm
- Contact Material :
- Copper, ETP
- Orientation :
- Straight
- Wire Gauge (Max) :
- 18 AWG
- Wire Gauge (Min) :
- 22 AWG
- Tongue Thickness :
- 812.8μm
- Heavy Duty :
- yes
- RoHS Status :
- RoHS Compliant
- Contact Finish :
- Tin
- Insulation :
- Insulated with Heat Shrink
- Government Qualified :
- No
- Material :
- Copper
- Terminal and Terminal Block Type :
- RING TERMINAL
- Terminal Type :
- Circular
- Thickness :
- 0.030 0.76mm
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Red
- Length - Overall :
- 1.248 31.70mm
- Datasheets
- 8-55846-2
