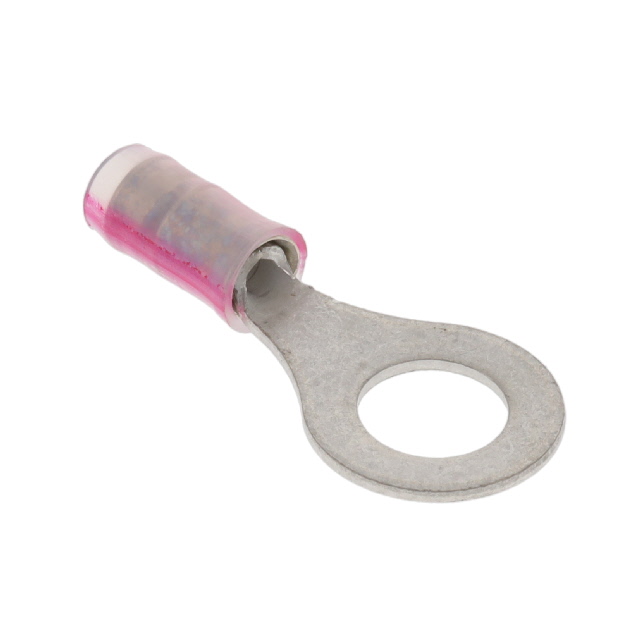

696422-7
Or copy the link below:
- Mfr.Part #
- 696422-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 16-22AWG #1/4
- Stock
- 9,370
- In Stock ：
- 9,370
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Feature :
- Radiation Resistant, Serrated Termination
- Contact Material :
- Copper
- Width - Outer Edges :
- 0.469 11.91mm
- Diameter - Inside :
- 3.2512 mm
- Terminal and Terminal Block Type :
- RING TERMINAL
- Min Operating Temperature :
- -40°C
- Stud Diameter :
- 6.731 mm
- Stud/Tab Size :
- 1/4 Stud
- Tongue Thickness :
- 790μm
- Terminal Type :
- Circular
- ELV :
- Compliant
- Series :
- PIDG
- Contact Finish :
- Tin
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Insulation Diameter :
- 0.080 ~ 0.125 (2.03mm ~ 3.18mm)
- Radiation Hardening :
- No
- Insulated Wire Support :
- yes
- ECCN Code :
- EAR99
- Color :
- Natural, Red Stripe
- Thickness :
- 0.031 0.79mm
- HTS Code :
- 8536.90.40.00
- Number of Holes :
- 1
- Material - Insulation :
- Polyvinylidene Fluoride (PVDF)
- Wire Gauge (Max) :
- 22 AWG
- RoHS Status :
- RoHS Compliant
- Insulation :
- Insulated
- Published :
- 2007
- Length - Overall :
- 1.083 27.51mm
- Length :
- 27.5082mm
- Termination :
- Crimp
- Wire/Cable Diameter :
- 3.175 mm
- Stud Size :
- M6
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Thickness :
- 787.4μm
- Wire Gauge :
- 16-22 AWG
- Mounting Type :
- Free Hanging (In-Line)
- Max Operating Temperature :
- 150°C
- Wire Gauge (Min) :
- 16 AWG
- Factory Lead Time :
- 18 Weeks
- Packaging :
- Bulk
- Mount :
- Free Hanging
