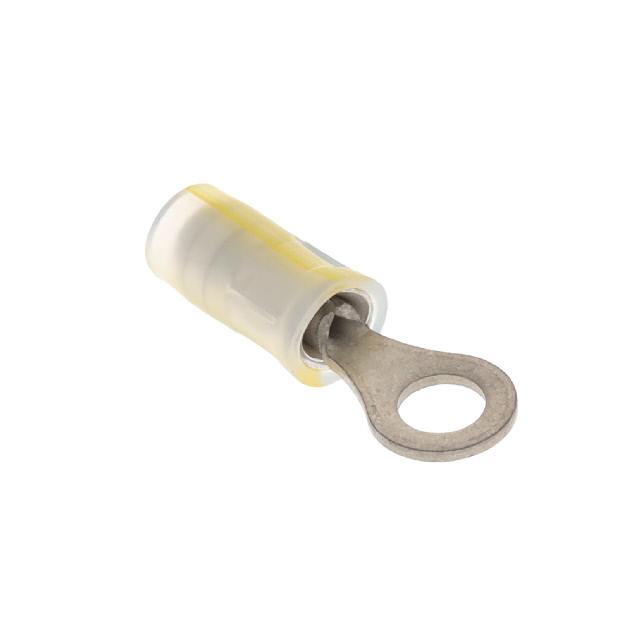

696420-3
Or copy the link below:
- Mfr.Part #
- 696420-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 24-26AWG #6 CRIMP
- Stock
- 3,813
- In Stock ：
- 3,813
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Thickness :
- 0.027 0.69mm
- Heavy Duty :
- No
- Length - Overall :
- 0.797 20.24mm
- Factory Lead Time :
- 20 Weeks
- Packaging :
- Bulk
- Tongue Thickness :
- 685.8μm
- Mounting Type :
- Free Hanging (In-Line)
- HTS Code :
- 8536.90.40.00
- Insulation Diameter :
- 2.08 mm
- Wire Gauge (Max) :
- 26 AWG
- Length :
- 20.2438mm
- Insulated Wire Support :
- yes
- Wire Gauge (Min) :
- 24 AWG
- Contact Finish :
- Tin
- Terminal Type :
- Circular
- Insulation :
- Insulated
- Mount :
- Free Hanging
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Feature :
- Radiation Resistant, Serrated Termination
- Lead Free :
- Not Applicable
- Color :
- Natural
- Stud/Tab Size :
- 6 Stud
- Terminal and Terminal Block Type :
- RING TERMINAL
- ECCN Code :
- EAR99
- Wire/Cable Diameter :
- 2.0828 mm
- RoHS Status :
- RoHS Compliant
- Material - Insulation :
- Polyvinylidene Fluoride (PVDF)
- Contact Material :
- Copper
- Stud Diameter :
- 3.683 mm
- ELV :
- Compliant
- Series :
- PIDG
- Number of Holes :
- 1
- Width - Outer Edges :
- 0.250 6.35mm
- Wire Gauge :
- 24-26 AWG
- Material Thickness :
- 685.8μm
- Stud Size :
- M3.5
- Termination :
- Crimp
- Published :
- 2007
- Diameter - Inside :
- 2.413 mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 696420-3
696420-3 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
