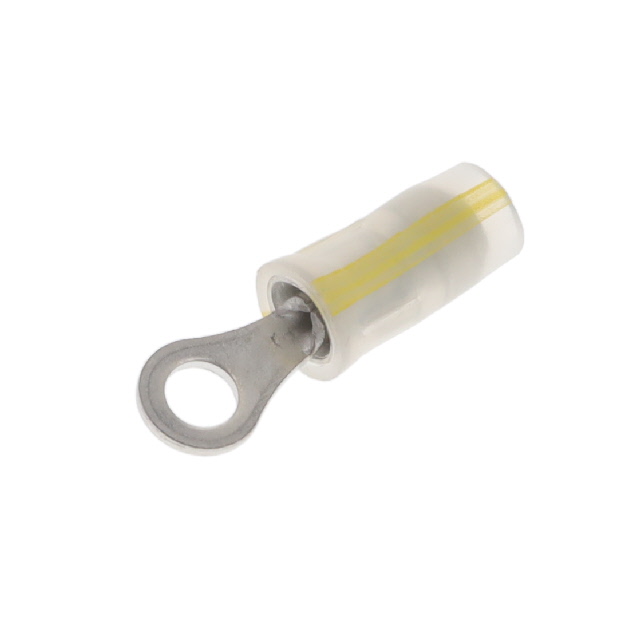

696420-2
Or copy the link below:
- Mfr.Part #
- 696420-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 24-26AWG #4 CRIMP
- Stock
- 4,674
- In Stock ：
- 4,674
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Terminal Type :
- Circular
- Insulated Wire Support :
- yes
- Wire/Cable Diameter :
- 2.0828 mm
- Series :
- PIDG
- Termination :
- Crimp
- Wire Gauge :
- 24-26 AWG
- RoHS Status :
- RoHS Compliant
- ECCN Code :
- EAR99
- Contact Material :
- Copper
- Terminal and Terminal Block Type :
- RING TERMINAL
- Material Thickness :
- 685.8μm
- Color :
- Natural
- Material - Insulation :
- Polyvinylidene Fluoride (PVDF)
- Contact Finish :
- Tin
- Number of Holes :
- 1
- Factory Lead Time :
- 21 Weeks
- Width - Outer Edges :
- 0.203 5.16mm
- Feature :
- Radiation Resistant, Serrated Termination
- Mounting Type :
- Free Hanging (In-Line)
- Insulation :
- Insulated
- Length - Overall :
- 0.741 18.82mm
- Heavy Duty :
- No
- Thickness :
- 0.027 0.69mm
- HTS Code :
- 8536.90.40.00
- Stud Diameter :
- 3.0226 mm
- Packaging :
- Bulk
- Length :
- 18.8214mm
- Stud/Tab Size :
- 4 Stud
- Tongue Thickness :
- 685.8μm
- ELV :
- Compliant
- Published :
- 2007
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Diameter :
- 2.08 mm
- Datasheets
- 696420-2
696420-2 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
