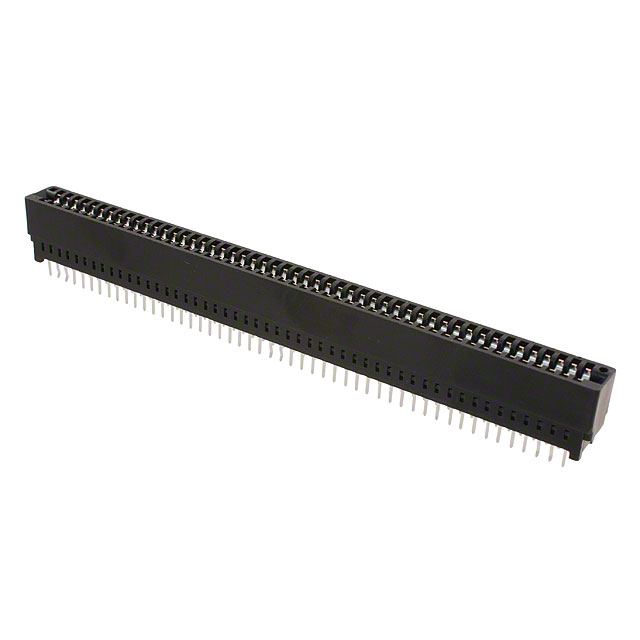

5645235-3

Share

Or copy the link below:

Mfr.Part #
5645235-3
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN EDGE DUAL FML 100POS 0.100
Stock
193
In Stock :
193

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Edgeboard Connectors
Max Current Rating :
3A
Contact Current Rating :
3A
Plating Thickness :
760 nm
Operating Supply Voltage :
400V
Contact Plating :
Tin, Gold
Max Voltage Rating (AC) :
1kV
RoHS Status :
RoHS Compliant
Pitch :
0.100 2.54mm
Number of Rows :
2
Orientation :
Vertical
Card Thickness :
0.054 ~ 0.070 1.37mm ~ 1.78mm
Operating Temperature :
-55°C~ 85°C
Lifecycle Status :
ACTIVE (Last Updated: 4 days ago)
Factory Lead Time :
12 Weeks
Published :
2009
Gender :
FEMALE
Flammability Rating :
UL94 V-0
Height :
15.748mm
Mount :
Through Hole
Mounting Type :
Through Hole
Termination :
Press-Fit
ECCN Code :
EAR99
HTS Code :
8536.69.40.40
Voltage - Rated :
400V
Card Type :
Non Specified - Dual Edge
Contact Finish :
Gold
Number of Power Positions :
100
Lead Free :
Lead Free
Series :
Standard Edge II
Material - Insulation :
Polyester, Glass Filled
Color :
Black
Pbfree Code :
yes
Packaging :
Bulk
Underplate Material :
Nickel
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Contact Resistance :
10MOhm
ELV :
Compliant
Read Out :
Dual
Row Spacing :
4.85 mm
Contact Finish Thickness :
30.0μin 0.76μm
Connector Type :
Socket
Circuit Application :
Power
Housing Material :
Polyester
Contact Material :
Phosphor Bronze
Datasheets
5645235-3
Introducing Edgeboard Connectors TE Connectivity AMP Connectors 5645235-3 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-55°C~ 85°C, Mounting Type:Through Hole, 5645235-3 pinout, 5645235-3 datasheet PDF, 5645235-3 amp .Beyond Edgeboard Connectors TE Connectivity AMP Connectors 5645235-3 ,we also offer SM3ZS067U215AER1500, 1759547-1, 1-2199230-6, Our vast inventory has you covered. Contact us now for immediate solutions.
