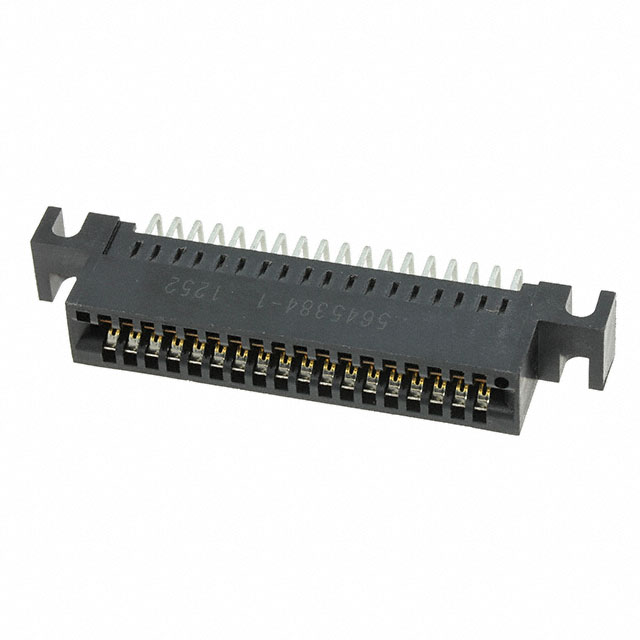

5645384-1

Share

Or copy the link below:

Mfr.Part #
5645384-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN EDGE DUAL FMALE 36POS 0.100
Stock
397
In Stock :
397

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Edgeboard Connectors
Material - Insulation :
Polyester, Glass Filled
Contact Current Rating :
3A
Operating Temperature :
-55°C~ 85°C
Color :
Black
Number of Contacts :
36
Contact Material :
Phosphor Bronze
Card Type :
Non Specified - Dual Edge
Underplate Material :
Nickel
Operating Supply Voltage :
400V
Card Thickness :
0.054 ~ 0.070 1.37mm ~ 1.78mm
Number of Power Positions :
36
Number of Positions :
36
Read Out :
Dual
Pitch :
0.100 2.54mm
Number of Rows :
2
Mounting Type :
Through Hole, Right Angle
Factory Lead Time :
15 Weeks
Connector Type :
Socket
Lead Free :
Lead Free
Plating :
Gold
ELV :
Compliant
Contact Plating :
Tin, Gold
Lifecycle Status :
ACTIVE (Last Updated: 1 day ago)
RoHS Status :
RoHS Compliant
Voltage - Rated :
400V
Gender :
FEMALE
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Max Operating Temperature :
85°C
Flammability Rating :
UL94 V-0
Contact Finish :
Gold
Packaging :
Tray
Published :
2005
Height :
16.256mm
Series :
Standard Edge II
Termination :
Solder
Flange Feature :
Flush Mount, Side Opening, Unthreaded, 0.128 (3.25mm) Dia
Circuit Application :
Power
Contact Finish Thickness :
30.0μin 0.76μm
Plating Thickness :
760 nm
Orientation :
RIGHT ANGLE
PCB Mounting Orientation :
RIGHT ANGLE
Housing Material :
Polyester
Mount :
Through Hole
Max Current Rating :
3A
Min Operating Temperature :
-55°C
Housing Color :
Black
Datasheets
5645384-1
Introducing Edgeboard Connectors TE Connectivity AMP Connectors 5645384-1 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-55°C~ 85°C, Mounting Type:Through Hole, Right Angle, 5645384-1 pinout, 5645384-1 datasheet PDF, 5645384-1 amp .Beyond Edgeboard Connectors TE Connectivity AMP Connectors 5645384-1 ,we also offer SM3ZS067U215AER1500, 1759547-1, 1-2199230-6, Our vast inventory has you covered. Contact us now for immediate solutions.
