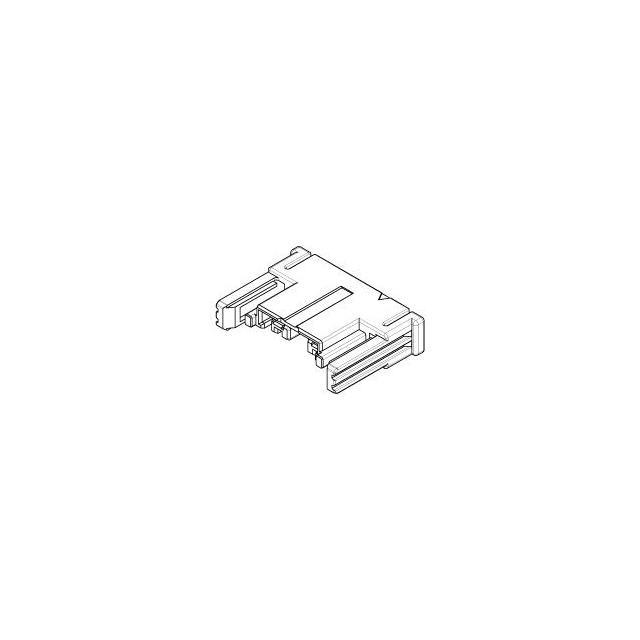

503473-0200
Or copy the link below:
- Mfr.Part #
- 503473-0200
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 3.7 LED CONN PLUG CRIMP HSG H>F
- Stock
- 42
- In Stock ：
- 42
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Solid State Lighting Connector Assemblies
- Polarization Key :
- POLARIZED HOUSING
- Termination :
- Crimp
- Contact Design :
- PREASSEM CONN
- Additional Feature :
- ROHS AND ELV COMPLIANT
- Housing Color :
- White
- Total Number of Contacts :
- 2
- Insulation Resistance :
- 1000000000Ohm
- Fastening Type :
- Latch Lock
- Contact Pattern :
- RECTANGULAR
- Number of Rows :
- 1
- Pbfree Code :
- yes
- Pitch :
- 0.146 3.70mm
- Reference Standard :
- UL
- Body Length or Diameter :
- 0.48 inch
- Contact Finish - Mating :
- NOT SPECIFIED
- Factory Lead Time :
- 19 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Option 1 :
- LOCKING
- Contact Material :
- NOT SPECIFIED
- RoHS Status :
- ROHS3 Compliant
- Style :
- Board to Cable/Wire
- Current Rating (Amps) :
- 2A
- Packaging :
- Bulk
- Contact Resistance :
- 40mOhm
- Connector Type :
- Plug Housing for Plug Contact
- Contact Gender :
- FEMALE
- Mounting Type :
- Free Hanging (In-Line)
- HTS Code :
- 8536.69.40.40
- Reliability :
- COMMERCIAL
- Body Depth :
- 0.331 inch
- Mating Cycles :
- 15
- Published :
- 2009
- Number of Positions :
- 2
- Housing Material :
- Polybutylene Terephthalate (PBT), Polyester
- Series :
- Flexi-Mate 503473
- Voltage - Rated :
- 500V
- Operating Temperature :
- -40°C~80°C
- ECCN Code :
- EAR99
- Datasheets
- 503473-0200
503473-0200 Documents
5034730200 datasheet pdf and Solid State Lighting Connectors product details from Molex stock available at Xinshop
