5034257591
Or copy the link below:
- Mfr.Part #
- 5034257591
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC 75POS 0.30MM R/A
- Stock
- 49,626
- In Stock ：
- 49,626
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Connector/Contact Type :
- Contacts, Top and Bottom
- Contact Finish Thickness :
- 3.94μin 0.10μm
- ECCN Code :
- EAR99
- Packaging :
- Cut Tape (CT)
- Height Above Board :
- 0.047 1.20mm
- Mounting Type :
- Surface Mount, Right Angle
- Actuator Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Pbfree Code :
- yes
- Number of Rows :
- 2
- REACH SVHC :
- Unknown
- Published :
- 2010
- Contact Finish :
- Gold
- Operating Temperature :
- -40°C~85°C
- Termination :
- Solder
- Cable End Type :
- Notched
- Flat Flex Type :
- FPC
- Current Rating :
- 200mA
- FFC, FCB Thickness :
- 0.20mm
- Pitch :
- 0.012 0.30mm
- Mating Cycles :
- 10
- Contact Material :
- COPPER ALLOY
- Mount :
- Surface Mount
- RoHS Status :
- ROHS3 Compliant
- Gender :
- Receptacle
- Length :
- 24.1mm
- Number of Positions :
- 75
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Actuator Color :
- Black
- Current Rating (Amps) :
- 0.2A
- Factory Lead Time :
- 8 Weeks
- Material Flammability Rating :
- UL94 V-0
- Depth :
- 4.6mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Color :
- White
- Series :
- BackFlip, Easy-On 503425
- Feature :
- Solder Retention
- Flammability Rating :
- UL94 V-0
- Orientation :
- RIGHT ANGLE
- Voltage - Rated :
- 50V
- Locking Feature :
- Flip Lock, Backlock
- Datasheets

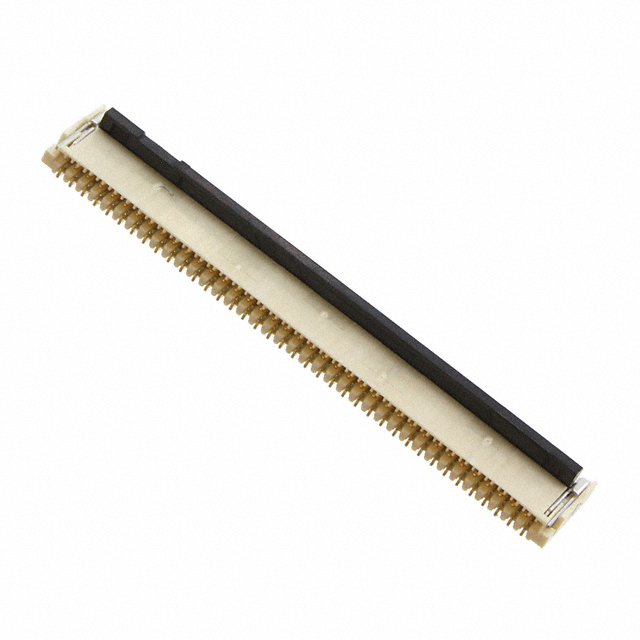

- 5034257591
BackFlip, Easy-On 503425 Series FPC Contacts, Top and Bottom Cut Tape (CT) 0.012 0.30mm Solder 75 Positions Surface Mount, Right Angle Gold -40°C~85°C 0.2A
503425-7591 Overview
The mounting type of the device is Surface Mount, Right Angle.A Cut Tape (CT) case is used to package the product.A product of the BackFlip, Easy-On 503425 Series, it belongs to the range of products of that series.A number of features make the Solder Retention feature more powerful.Surface Mount represents the mounting point for the part.-40°C~85°C Operating Temperature is the default operating temperature for the device.
503425-7591 Features
BackFlip, Easy-On 503425 series
503425-7591 Applications
There are a lot of Molex
503425-7591 FFC, FPC (Flat Flexible) Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
