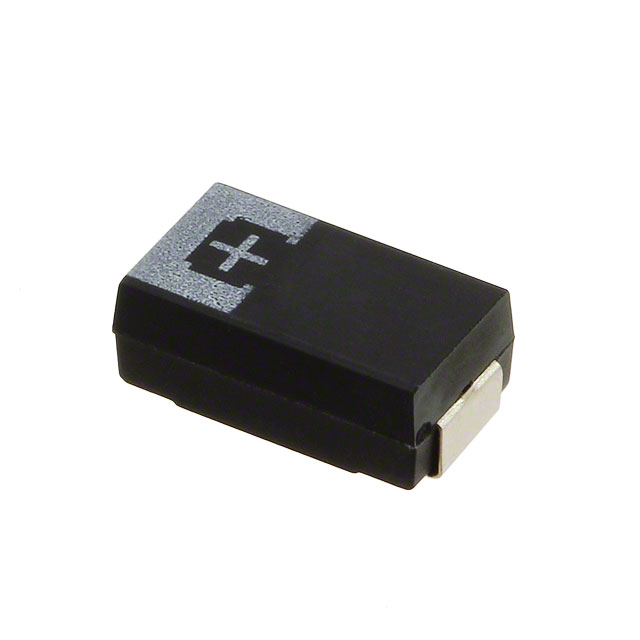

4TPB330ML

Manufacturer :

Panasonic

Product Category :

Tantalum - Polymer Capacitors

Voltage - Rated DC :

4V

Capacitance :

330µF

RoHS Status :

ROHS3 Compliant

Type :

Molded

Packing Method :

TR

Case Code (Imperial) :

2917

JESD-609 Code :

e4

Terminal Finish :

Palladium/Gold (Pd/Au)

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Leakage Current :

132μA

HTS Code :

8532.21.00.50

Terminal Shape :

J BEND

Height Seated (Max) :

0.118 3.00mm

Mounting Type :

Surface Mount

Feature :

GENERAL PURPOSE

Mount :

Surface Mount

Length :

7.3mm

Size / Dimension :

0.287Lx0.169W 7.30mmx4.30mm

Dielectric Material :

TANTALUM (SOLID POLYMER)

Packaging :

Cut Tape (CT)

Dissipation Factor :

10 %

Factory Lead Time :

14 Weeks

Polarity :

Polar

Ripple Current :

2A

Depth :

4.3mm

REACH SVHC :

No SVHC

Termination :

SMD/SMT

Number of Terminations :

2

Series :

POSCAP™ TPB

Manufacturer Size Code :

D3L

Pbfree Code :

yes

Tolerance :

±20%

Case Code (Metric) :

7343

Radiation Hardening :

No

Voltage :

4V

Tan Delta :

0.1

Operating Temperature :

-55°C~105°C

ECCN Code :

EAR99

Additional Feature :

RIPPLE CURRENT MEASURED AT 100KHZ TO 500 KHZ

Published :

2007

Lead Free :

Lead Free

ESR (Equivalent Series Resistance) :

40mOhm @ 100kHz

Height :

2.8mm

Package / Case :

2917 (7343 Metric)
