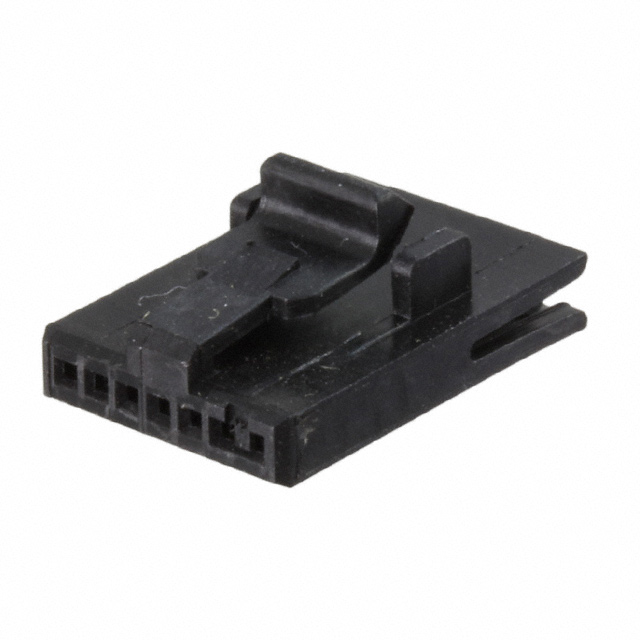

487545-4
Or copy the link below:
- Mfr.Part #
- 487545-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC RCPT HSG 7POS 1.27MM
- Stock
- 7,611
- In Stock ：
- 7,611
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- FFC, FPC (Flat Flexible) Connector Housings
- Dielectric Withstanding Voltage :
- 300VAC V
- Series :
- AMPMODU System 50
- Current Rating (Amps) :
- 1.5A
- Operating Temperature :
- -55°C~105°C
- Housing Color :
- Black
- Pbfree Code :
- yes
- FFC, FCB Thickness :
- 0.05-0.08mm
- Total Number of Contacts :
- 7
- Sealable :
- No
- Mating Alignment :
- With
- Option :
- GENERAL PURPOSE
- Number of Positions :
- 7
- Note :
- Contacts Not Included
- Insulation Resistance :
- 5GOhm
- Operating Supply Voltage :
- 100V
- Mount :
- Free Hanging
- Pitch :
- 0.050 1.27mm
- ELV :
- Compliant
- Contact Style :
- SQ PIN-SKT
- Connector Type :
- Housing for Female Contacts
- Depth :
- 14.85mm
- IEC Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- RoHS Compliant
- Contact Pattern :
- RECTANGULAR
- Circuit Application :
- Signal
- Lead Free :
- Lead Free
- Gender :
- FEMALE
- MIL Conformance :
- No
- DIN Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Locking Feature :
- Latch Lock
- ECCN Code :
- EAR99
- Reliability :
- COMMERCIAL
- Published :
- 2008
- Length :
- 9.98mm
- Housing Material :
- Polyester
- Insertion Force-Max :
- 2.224 N
- Number of Rows :
- 1
- Durability :
- 200 Cycles
- Reference Standard :
- UL
- Flat Flex Type :
- FFC
- Mixed Contacts :
- No
- Factory Lead Time :
- 24 Weeks
- Wire/Cable Type :
- Flat Flex
- Packaging :
- Bulk
- Orientation :
- Straight
- Flammability Rating :
- UL94 V-0
- Filter Feature :
- No
- Body/Shell Style :
- Receptacle
- Datasheets
- 487545-4
487545-4 datasheet pdf and FFC, FPC (Flat Flexible) Connectors - Housings product details from TE Connectivity AMP Connectors stock available at Xinshop
