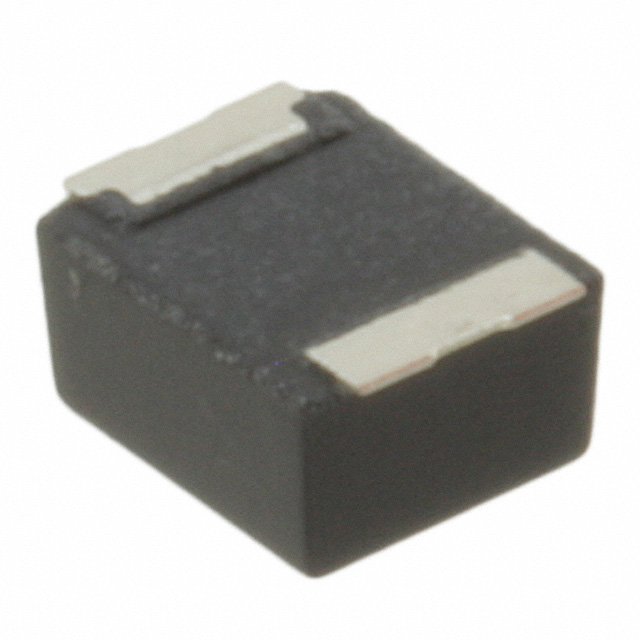

2TPSF270M6E

Manufacturer :

Panasonic

Product Category :

Tantalum - Polymer Capacitors

Radiation Hardening :

No

JESD-609 Code :

e4

Dielectric Material :

TANTALUM (SOLID POLYMER)

Voltage :

2V

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

5 (48 Hours)

Lifetime @ Temp :

1000 Hrs @ 105°C

REACH SVHC :

No SVHC

Case Code (Metric) :

3528

Capacitance :

270μF

Factory Lead Time :

14 Weeks

Case Code (Imperial) :

1411

Height Seated (Max) :

0.079 2.00mm

Ripple Current :

3.2A

Dissipation Factor :

8 %

Series :

POSCAP™ TPSF

Height :

1.9mm

Termination :

SMD/SMT

Package / Case :

1411 (3528 Metric)

Mount :

Surface Mount

Lead Free :

Lead Free

Size / Dimension :

0.138Lx0.110W 3.50mmx2.80mm

Number of Terminations :

2

Mounting Type :

Surface Mount

Packaging :

Tape and Reel (TR)

Published :

2008

Manufacturer Size Code :

B2S

Type :

Molded

Operating Temperature :

-55°C~105°C

Tolerance :

±20%

Leakage Current :

108μA

Depth :

2.8mm

Terminal Finish :

Palladium/Gold (Pd/Au)

Polarity :

Polar

ESR (Equivalent Series Resistance) :

6mOhm @ 100kHz

Voltage - Rated DC :

2V

Feature :

GENERAL PURPOSE

RoHS Status :

ROHS3 Compliant
