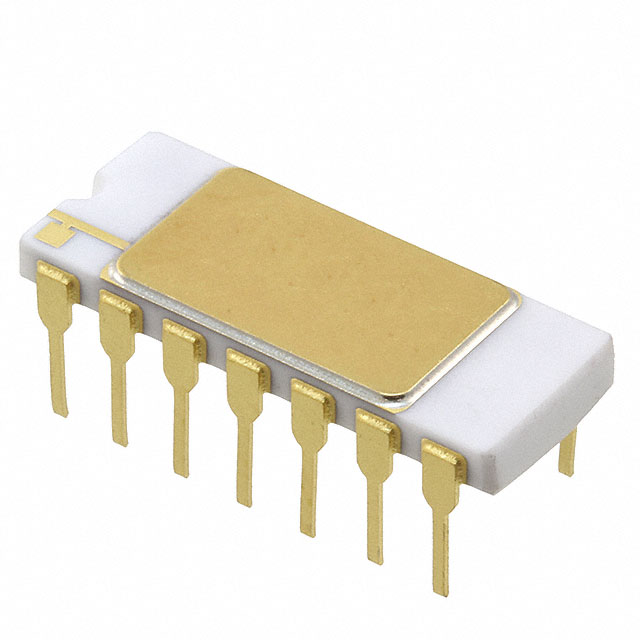

2N6987

Manufacturer :

Microchip Technology

Product Category :

Transistors - Bipolar (BJT) - Arrays

Contact Plating :

Lead, Tin

Polarity/Channel Type :

PNP

Max Collector Current :

600mA

Mount :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

12 Weeks

RoHS Status :

Non-RoHS Compliant

Power - Max :

1.5W

Lifecycle Status :

IN PRODUCTION (Last Updated: 1 month ago)

Terminal Finish :

Tin/Lead (Sn/Pb)

DC Current Gain (hFE) (Min) @ Ic, Vce :

100 @ 150mA 10V

ECCN Code :

EAR99

Qualification Status :

Not Qualified

JESD-30 Code :

R-XDIP-T14

Vce Saturation (Max) @ Ib, Ic :

1.6V @ 50mA, 500mA

Number of Elements :

4

Package / Case :

14-DIP (0.300, 7.62mm)

Collector Emitter Voltage (VCEO) :

1.6V

JESD-609 Code :

e0

Current - Collector Cutoff (Max) :

10μA ICBO

Collector Emitter Breakdown Voltage :

60V

Max Power Dissipation :

1.5W

Packaging :

Bulk

JEDEC-95 Code :

TO-116

Collector Base Voltage (VCBO) :

60V

Operating Temperature :

-65°C~200°C TJ

Published :

2002

Number of Terminations :

14

Pbfree Code :

No

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Mounting Type :

Through Hole

Transistor Type :

4 PNP (Quad)

Transistor Element Material :

SILICON

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Position :

Dual

Transistor Application :

SWITCHING

Configuration :

Single
