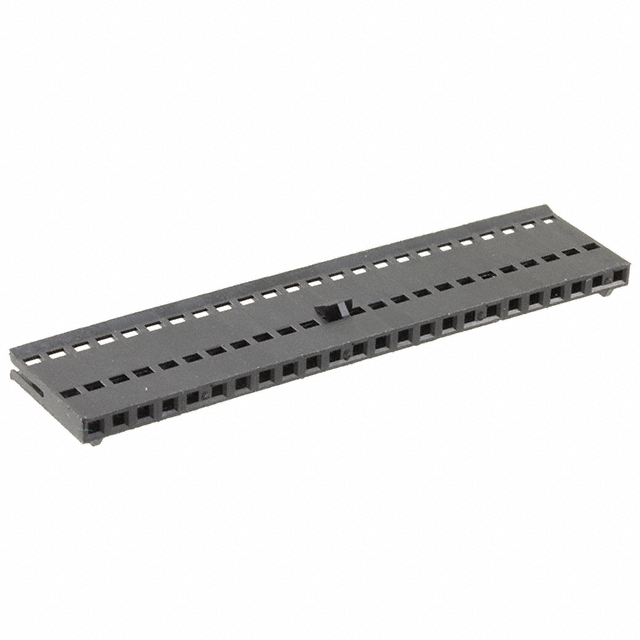

2-487769-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

FFC, FPC (Flat Flexible) Connector Housings

Flammability Rating :

UL94 V-0

Note :

Contacts Not Included

Insulation Resistance :

5GOhm

Wire/Cable Type :

Flat Flex

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Sealable :

No

ECCN Code :

EAR99

Reliability :

COMMERCIAL

Current Rating :

1.5A

Number of Positions :

24

Length :

60.8mm

Housing Color :

Black

Body/Shell Style :

Receptacle

Orientation :

Straight

Housing Material :

Thermoplastic

Factory Lead Time :

9 Weeks

Operating Supply Voltage :

300V

Flat Flex Type :

FFC

Option :

GENERAL PURPOSE

Circuit Application :

Signal

Material Flammability Rating :

UL94 V-0

Depth :

13.72mm

Reference Standard :

UL

Total Number of Contacts :

23

Pitch :

0.100 2.54mm

Polarization Key :

POLARIZED HOUSING

Pbfree Code :

yes

Contact Style :

SQ PIN-SKT

Locking Feature :

Detent Lock

RoHS Status :

RoHS Compliant

Filter Feature :

No

Gender :

FEMALE

FFC, FCB Thickness :

0.05-0.13mm

ELV :

Compliant

Connector Type :

Housing for Female Contacts

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

UL Flammability Code :

94V-0

MIL Conformance :

No

Contact Pattern :

RECTANGULAR

Mixed Contacts :

No

Published :

1997

Operating Temperature :

-65°C~105°C

Rated Current (Signal) :

2A

IEC Conformance :

No

Packaging :

Bulk

DIN Conformance :

No

Mating Alignment :

With

Mount :

Cable, Free Hanging

Number of Rows :

1
