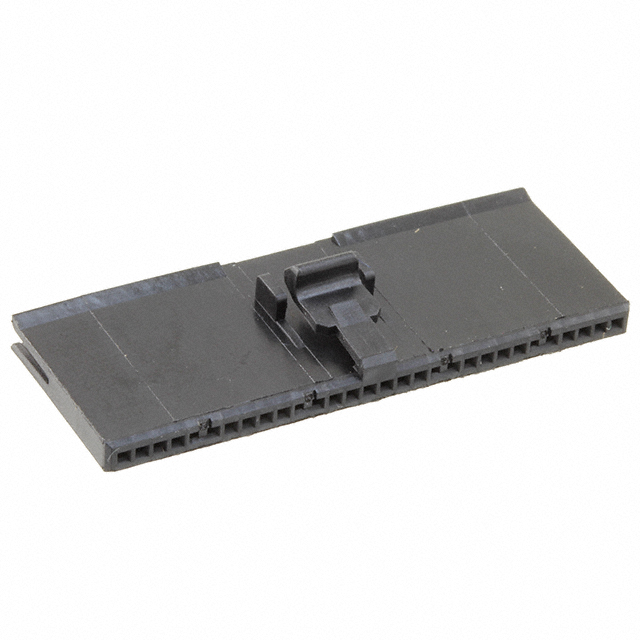

2-487545-7

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

FFC, FPC (Flat Flexible) Connector Housings

Insertion Force-Max :

2.224 N

Body Breadth :

0.275 inch

Depth :

14.86mm

Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Option :

GENERAL PURPOSE

Circuit Application :

Signal

Flammability Rating :

UL94 V-0

Durability :

200 Cycles

Reliability :

COMMERCIAL

Lead Free :

Lead Free

Packaging :

Bulk

Wire/Cable Type :

Flat Flex

Contact Style :

SQ PIN-SKT

RoHS Status :

RoHS Compliant

Mixed Contacts :

No

Flat Flex Type :

FFC

Note :

Contacts Not Included

Current Rating :

1.5A

FFC, FCB Thickness :

0.05-0.08mm

ECCN Code :

EAR99

DIN Conformance :

No

Operating Supply Voltage :

100V

Number of Positions :

30

ELV :

Compliant

Operating Temperature :

-55°C~105°C

Reference Standard :

UL

Gender :

Receptacle

Connector Type :

Housing for Female Contacts

Total Number of Contacts :

30

Pbfree Code :

yes

Material Flammability Rating :

UL94 V-0

Mount :

Cable, Free Hanging

Insulation Resistance :

5GOhm

Locking Feature :

Latch Lock

Number of Rows :

1

MIL Conformance :

No

Published :

2008

Factory Lead Time :

5 Weeks

Housing Material :

Polyester

Withdrawl Force-Min :

.278 N

Orientation :

Straight

Series :

AMPMODU System 50

Pitch :

0.050 1.27mm

Housing Color :

Black

REACH SVHC :

Unknown

Mating Alignment :

With

Filter Feature :

No

Length :

39.19mm

Sealable :

No

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
