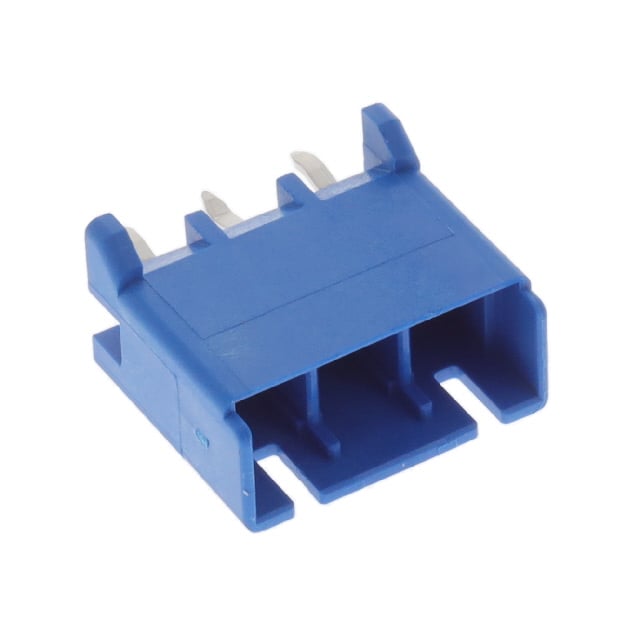

2-1376383-3
Or copy the link below:
- Mfr.Part #
- 2-1376383-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 5MM
- Stock
- 794
- In Stock ：
- 794
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Material Flammability Rating :
- UL94 V-0
- Series :
- Power Key
- Current Rating (Amps) :
- Varies by WireGAuge
- Reliability :
- COMMERCIAL
- Approval Agency :
- CSA
- Gender :
- Male
- Width :
- 14.097mm
- Mounting Option 1 :
- FRICTION RAMP
- Insulation Resistance :
- 500000000Ohm
- Style :
- Board to Cable/Wire
- Durability :
- 25 Cycles
- Applications :
- GENERAL PURPOSE
- PCB Thickness :
- 63μm
- Material :
- Nylon
- Height :
- 13.97mm
- Plating Thickness :
- 39.36μm
- Connector Type :
- Header
- ECCN Code :
- EAR99
- Packaging :
- Bulk
- Contact Type :
- Tab
- Sealable :
- No
- Operating Supply Voltage :
- 300V
- Orientation :
- Vertical
- Contact Material :
- COPPER ALLOY
- DIN Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Circuit Application :
- Power
- Number of Conductors :
- ONE
- Number of Positions Loaded :
- All
- Current Rating :
- 10A
- Shrouding :
- Shrouded - 4 Wall
- Body Breadth :
- 0.275 inch
- Body Depth :
- 0.555 inch
- Contact Current Rating :
- 10A
- Length :
- 16.5862mm
- Stack Height (Mating) :
- 19.4mm
- Published :
- 2008
- Number of Rows :
- 1
- Feature :
- Board Guide
- Contact Retention :
- Without
- Factory Lead Time :
- 15 Weeks
- Insertion Force-Max :
- 9.7856 N
- Insulation Height :
- 0.555 14.10mm
- Housing Color :
- Blue
- RoHS Status :
- RoHS Compliant
- Mating Post Length :
- 6.2992mm
- Contact Finish - Mating :
- Tin
- Pitch - Mating :
- 0.197 5.00mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Voltage - Rated :
- 300VAC
- ELV :
- Compliant
- IEC Conformance :
- No
- Lead Free :
- Lead Free
- Contact Shape :
- RECTANGULAR
- MIL Conformance :
- No
- Number of Power Positions :
- 3
- Mounting Type :
- Through Hole
- Termination :
- Kinked Pin, Solder
- Flammability Rating :
- UL94 V-0
- Fastening Type :
- Locking Ramp
- Insulation Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Contact Length - Post :
- 0.138 3.50mm
- Dielectric Withstanding Voltage :
- 2200VAC V
- Mixed Contacts :
- yes
- Operating Temperature :
- -40°C~105°C
- Datasheets
- 2-1376383-3
Power Key Series 1-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6, Glass Filled Board to Cable/Wire 0.555 14.10mm Height
2-1376383-3 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Power Key Series.There are a variety of possible applications for this device, including General Purpose.Several benefits come from the Board Guide feature.It runs on 300V voltage.Devices operate at -40°C~105°C operating temperatures.
2-1376383-3 Features
Power Key series
2-1376383-3 Applications
There are a lot of TE Connectivity AMP Connectors
2-1376383-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
