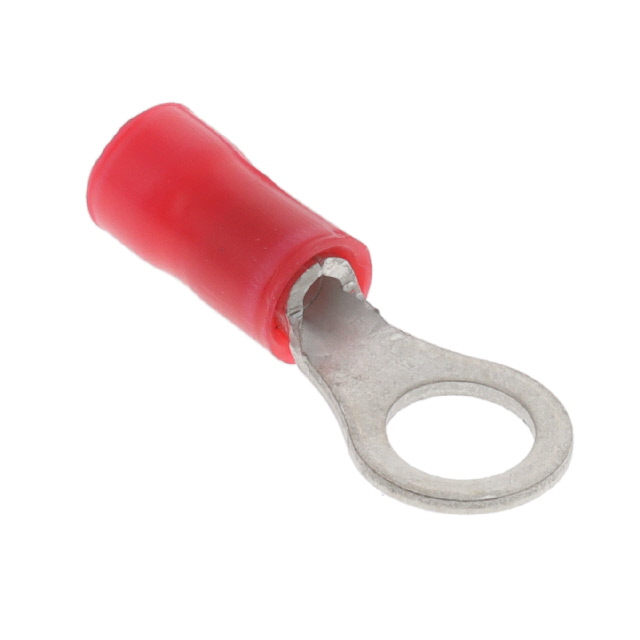

2-130014-1
Or copy the link below:
- Mfr.Part #
- 2-130014-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 16-22AWG M5 CRIMP
- Stock
- 49,632
- In Stock ：
- 49,632
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Heavy Duty :
- No
- Pbfree Code :
- yes
- Material Thickness :
- 787.4μm
- Mounting Type :
- Free Hanging (In-Line)
- ELV :
- Compliant
- Diameter - Inside :
- 3.7 mm
- Width - Outer Edges :
- 0.315 8.00mm
- Feature :
- Serrated Termination
- Termination :
- Crimp
- Published :
- 2009
- Contact Material :
- Copper
- ECCN Code :
- EAR99
- Factory Lead Time :
- 9 Weeks
- Insulation :
- Insulated
- Stud/Tab Size :
- M5 Stud
- Packaging :
- Tape and Reel (TR)
- Length - Overall :
- 0.858 21.79mm
- Voltage - Rated AC :
- 600V
- Terminal Type :
- Circular
- Terminal and Terminal Block Type :
- RING TERMINAL
- HTS Code :
- 8536.90.40.00
- Wire Gauge (Max) :
- 22 AWG
- Wire Gauge (Min) :
- 16 AWG
- Contact Plating :
- Tin
- Series :
- Plasti-Grip
- Mount :
- Free Hanging
- Number of Holes :
- 1
- RoHS Status :
- RoHS Compliant
- Length :
- 21.8mm
- Wire Gauge :
- 16-22 AWG
- Material - Insulation :
- Poly-Vinyl Chloride (PVC)
- Color :
- Red
- Insulated Wire Support :
- yes
- Tongue Thickness :
- 800μm
- Insulation Diameter :
- 0.106 ~ 0.140 (2.69mm ~ 3.56mm)
- Stud Size :
- M5
- Thickness :
- 0.032 0.81mm
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Stud Diameter :
- 5.1816 mm
- Wire/Cable Diameter :
- 3.56 mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Lead Free :
- Not Applicable
- Datasheets
- 2-130014-1
2-130014-1 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
