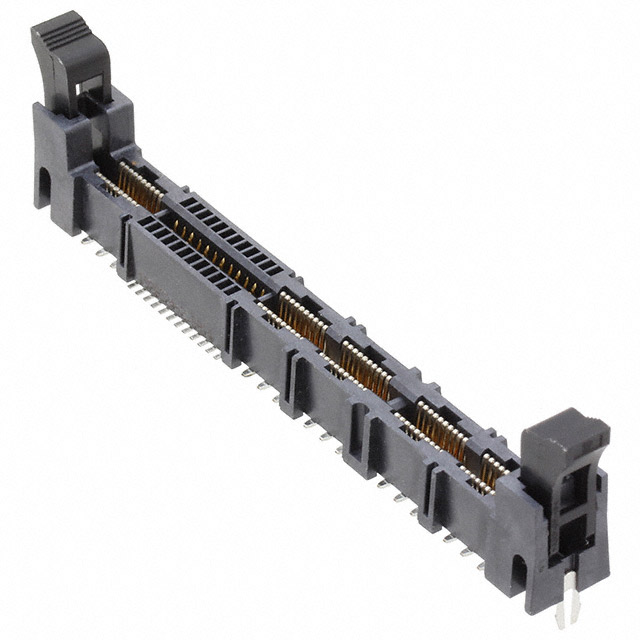

1926024-2
Or copy the link below:
- Mfr.Part #
- 1926024-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 34POS GOLD
- Stock
- 39,910
- In Stock ：
- 39,910
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Contact Finish :
- Gold
- Operating Temperature :
- -55°C~105°C
- Pitch :
- 1.27mm
- Color :
- Black
- Plating Thickness :
- 760 nm
- Length :
- 94.996mm
- Height :
- 19.25mm
- Min Operating Temperature :
- -67°C
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Housing Material :
- Thermoplastic
- Contact Plating :
- Gold, Tin
- Card Thickness :
- 0.062 1.57mm
- Operating Supply Voltage :
- 250V
- Series :
- Mini Crown Edge, Elcon
- Number of Positions :
- 34 (24 + 10 Power)
- ELV :
- Compliant
- Approval Agency :
- CSA
- Contact Current Rating :
- 25A
- Orientation :
- Vertical
- Max Operating Temperature :
- 221°C
- Mounting Type :
- Surface Mount
- Max Current Rating :
- 25A
- Housing Color :
- Black
- Connector Type :
- Socket
- Gender :
- FEMALE
- Published :
- 2008
- Number of Rows :
- 2
- Factory Lead Time :
- 13 Weeks
- Card Type :
- Non Specified - Dual Edge
- Voltage - Rated :
- 250V
- Termination :
- Solder
- Flammability Rating :
- UL94 V-0
- Read Out :
- Dual
- Width :
- 9.0297mm
- RoHS Status :
- RoHS Compliant
- PCB Mounting Orientation :
- Vertical
- Material - Insulation :
- Polyester, Glass Filled
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Plating :
- Gold
- Row Spacing :
- 6.75 mm
- Number of Contacts :
- 34
- Number of Power Positions :
- 10
- Number of Pins :
- 34
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Contact Material :
- COPPER ALLOY
- Circuit Application :
- Power
- Feature :
- Board Lock, Latches
- Packaging :
- Tray
- Number of Signal Positions :
- 24
- Datasheets
- 1926024-2
Female Black 1.27mm Copper Alloy 2 Rows Tray Solder Gold 34 (24 + 10 Power) Positions Polyester, Glass Filled
1926024-2 Overview
Material was packaged according to Tray's specifications.It's best to mount type Surface Mount.Devices are connected through connector sockets Socket.It has Board Lock, Latches features.The Mini Crown Edge, Elcon indicates the series number of the device.For stable operation, a maximum operating temperature of 221°C°C should be considered.The device must maintain a minimum working temperature of -67°C degrees Celsius in order to ensure its reliability.For it to function, there are 34 pins required.
1926024-2 Features
Mini Crown Edge, Elcon series
1926024-2 Applications
There are a lot of TE Connectivity AMP Connectors
1926024-2 Edgeboard Connectors applications.
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
