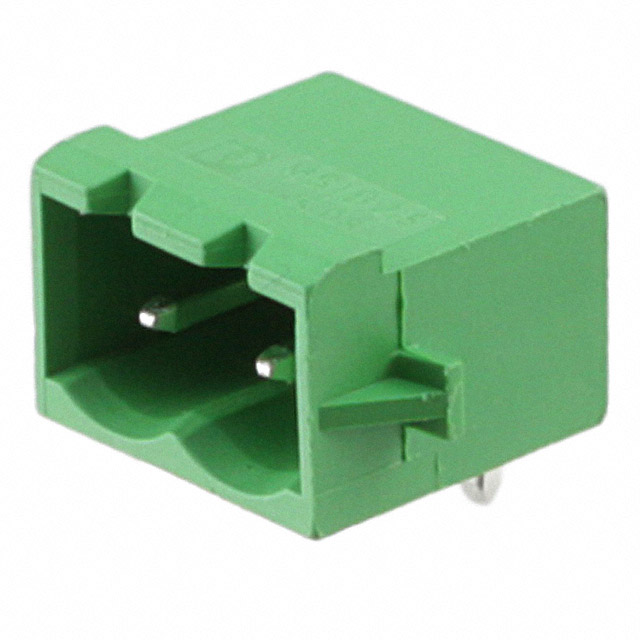

1926015
Or copy the link below:
- Mfr.Part #
- 1926015
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 2POS 90DEG 5.08MM
- Stock
- 327
- In Stock ：
- 327
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Current :
- 12A
- Feature :
- Locking Ramp
- RoHS Status :
- RoHS Compliant
- Mount :
- Through Hole
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Additional Feature :
- PBT, 94V-0
- HTS Code :
- 8536.69.40.40
- Factory Lead Time :
- 4 Weeks
- Current Rating :
- 12A
- Series :
- COMBICON MSTBA
- Pitch :
- 0.200 5.08mm
- Flammability Rating :
- UL94 V-0
- ECCN Code :
- EAR99
- Material Flammability Rating :
- UL94 V-0
- Published :
- 2003
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Current Rating :
- 12A
- Number of Levels :
- 1
- Orientation :
- RIGHT ANGLE
- Termination Style :
- Solder
- Insulation Height :
- 0.339 8.61mm
- Contact Tail Length :
- 0.138 3.50mm
- Depth :
- 12mm
- Color :
- Green
- Lead Free :
- Lead Free
- Number of Rows :
- 1
- Number of Ways :
- 2
- Contact Mating Finish :
- Tin
- Voltage - Rated :
- 250V
- Weight :
- 1.200007g
- Mounting Type :
- Through Hole
- Voltage - IEC :
- 400V
- Number of Positions Per Level :
- 2
- Current - UL :
- 15A
- Header Orientation :
- 90°, Right Angle
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Pbfree Code :
- yes
- Number of Decks :
- 1
- Safety Approval :
- UL
- Voltage :
- 300V
- Datasheets
- 1926015
Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MSTBA Polybutylene Terephthalate (PBT) Tin
1926015 Overview
Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the COMBICON MSTBA Series.Furthermore, there are other features such as PBT, 94V-0, to name a few.In many ways, Locking Ramp makes it more powerful.By Through Hole, the part is mounted.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.
1926015 Features
COMBICON MSTBA series
1926015 Applications
There are a lot of Phoenix Contact
1926015 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
