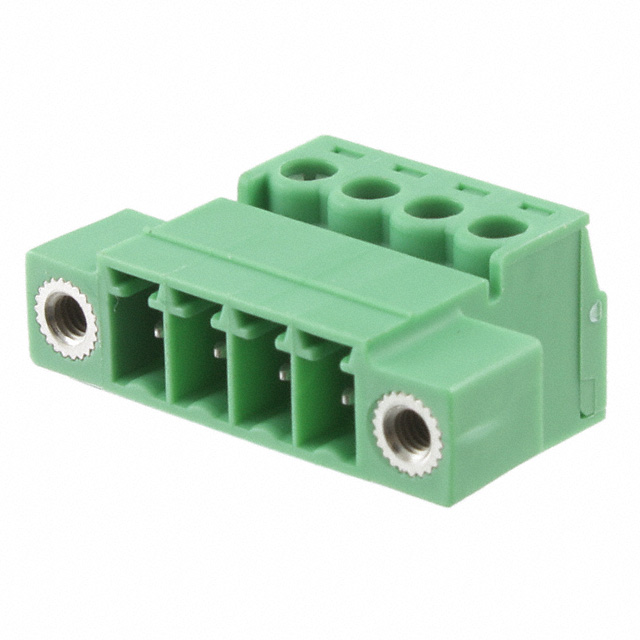

1858057

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

RoHS Status :

RoHS Compliant

Number of Decks :

1

Pbfree Code :

yes

ECCN Code :

EAR99

Wire Gauge (Max) :

30 AWG

Gender :

Male

Wire Gauge or Range - AWG :

14-30 AWG

Packaging :

Bulk

Series :

COMBICON IMC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

Number of Contacts :

4

Material :

Polyamide

Length :

11.1mm

Max Current Rating :

8A

Voltage - IEC :

320V

Weight :

102.999998g

Current :

8A

Termination Style :

Screw - Rising Cage Clamp

Orientation :

RIGHT ANGLE

Mounting Type :

Free Hanging (In-Line)

Depth :

11.1mm

Torque - Screw :

0.22-0.25 Nm (1.9-2.2 Lb-In)

Feature :

Mating Flange

Connector Type :

Plug, Screw

Height :

17.9mm

Voltage :

300V

Wire Gauge or Range - mm² :

0.14-1.5mm2

Number of Levels :

1

Number of Rows :

1

Width :

25.63mm

Plug Wire Entry :

180°

Flammability Rating :

UL94 V-0

Number of Ways :

4

Pitch :

0.150 3.81mm

Housing Material :

Polyamide (PA), Nylon

Color :

Green

Safety Approval :

UL

Reach Compliance Code :

not_compliant

Published :

2012

Lead Free :

Lead Free

Type :

Plug, Male Pins

Factory Lead Time :

7 Weeks

Current Rating :

8A

Contact Plating :

Tin

Mount :

Cable, Free Hanging, Panel

Screw Size :

M2

Wire Strip Length :

7mm

Voltage - Rated :

160V

Insulation Height :

0.437 11.10mm

Termination :

Screw

Wire Gauge (Min) :

14 AWG
