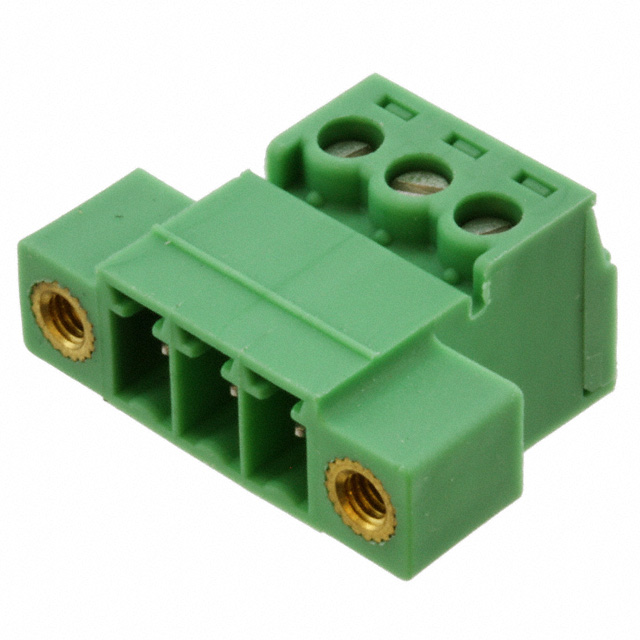

1858044

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Insulation Height :

0.437 11.10mm

Width :

21.82mm

Safety Approval :

UL

Voltage - Rated :

160V

Published :

2010

Number of Levels :

1

Voltage - IEC :

320V

Wire Gauge or Range - mm² :

0.14-1.5mm2

Series :

COMBICON IMC

Wire Gauge (Max) :

16 AWG

Depth :

11.1mm

Torque - Screw :

0.22-0.25 Nm (1.9-2.2 Lb-In)

Color :

Green

Mounting Type :

Free Hanging (In-Line)

Wire Gauge (Min) :

28 AWG

Type :

Plug, Male Pins

Material Flammability Rating :

UL94 V-0

Number of Ways :

3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

PA, 94V-0

Feature :

Mating Flange

Max Current Rating :

8A

Wire Strip Length :

7mm

Screw Size :

M2

Pbfree Code :

yes

Connector Type :

Plug, Screw

Height :

17.9mm

Mount :

Cable, Free Hanging, Panel

Plug Wire Entry :

180°

ECCN Code :

EAR99

Gender :

Male

RoHS Status :

RoHS Compliant

Length :

11.1mm

Voltage :

300V

Weight :

3.360014g

Reach Compliance Code :

Unknown

Material :

Polyamide

Pitch :

0.150 3.81mm

Number of Rows :

1

Number of Decks :

1

Termination :

Screw

Housing Material :

Polyamide (PA), Nylon

Wire Gauge or Range - AWG :

14-30 AWG

Number of Contacts :

3

Flammability Rating :

UL94 V-0

Lead Free :

Lead Free

Current Rating :

8A

Approval Agency :

CB, VDE, cULus

Current :

8A

Packaging :

Bulk

Termination Style :

Screw - Rising Cage Clamp

Orientation :

RIGHT ANGLE

Factory Lead Time :

4 Weeks

Contact Plating :

Tin
