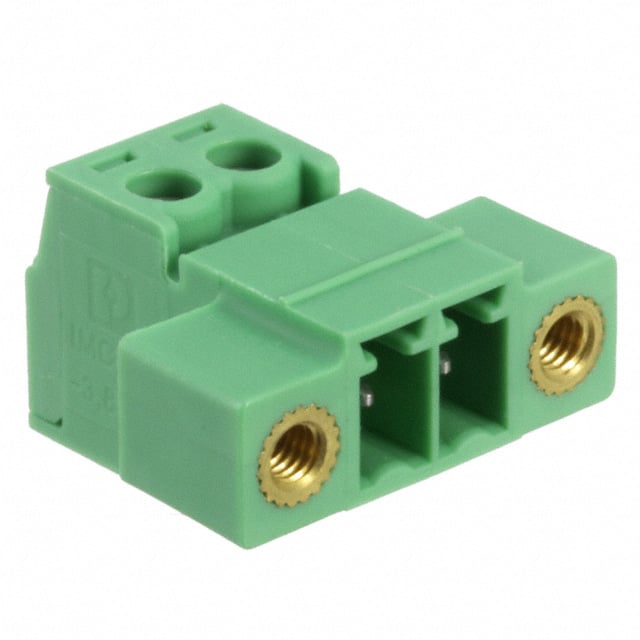

1858031

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

HTS Code :

8536.69.40.40

Mount :

Cable, Free Hanging

Number of Levels :

1

Wire Gauge or Range - mm² :

0.14-1.5mm2

Lead Free :

Lead Free

Current Rating :

8A

Number of Rows :

1

Pbfree Code :

yes

Mounting Type :

Free Hanging (In-Line)

Connector Type :

Plug, Screw

Material Flammability Rating :

UL94 V-0

Additional Feature :

POLYAMIDE, 94V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Ways :

2

Contact Plating :

Tin

Factory Lead Time :

4 Weeks

Wire Gauge or Range - AWG :

14-30 AWG

Depth :

17.9mm

Torque - Screw :

0.22-0.25 Nm (1.9-2.2 Lb-In)

Voltage - Rated :

160V

Orientation :

RIGHT ANGLE

Insulation Height :

0.437 11.10mm

ECCN Code :

EAR99

Reach Compliance Code :

not_compliant

Wire Gauge (Max) :

16 AWG

Feature :

Mating Flange

Wire Gauge (Min) :

28 AWG

Width :

18.01mm

Number of Contacts :

2

Current :

8A

Termination :

Screw

Voltage :

300V

Weight :

2.620006g

Published :

2011

Flammability Rating :

UL94 V-0

Wire Strip Length :

7mm

Screw Size :

M2

Number of Decks :

1

Type :

Plug, Male Pins

Plug Wire Entry :

180°

Length :

18.01mm

Max Supply Voltage :

160V

RoHS Status :

RoHS Compliant

Housing Material :

Polyamide (PA), Nylon

Max Current Rating :

8A

Termination Style :

Screw - Rising Cage Clamp

Pitch :

0.150 3.81mm

Series :

COMBICON IMC

Voltage - IEC :

320V

Height :

17.9mm

Packaging :

Bulk

Color :

Green
