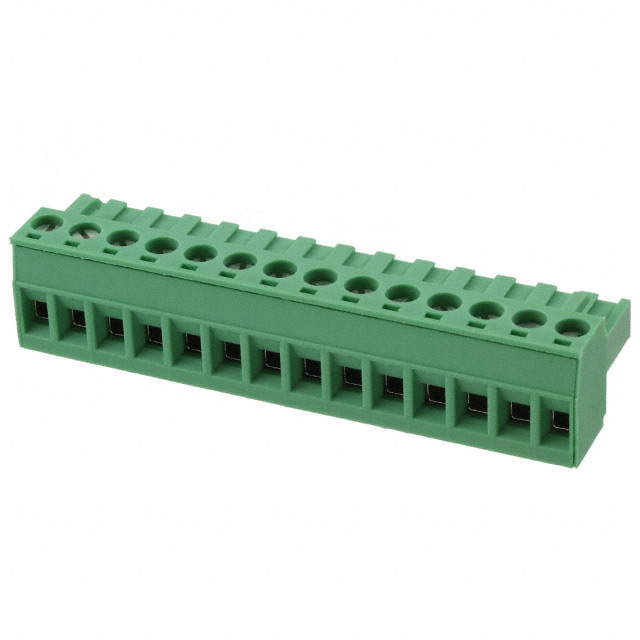

1781108

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Contact Mating Finish :

Tin

Safety Approval :

UL

HTS Code :

8536.69.40.40

Type :

Plug, Female Sockets

Termination Style :

Screw - Rising Cage Clamp

Material Flammability Rating :

UL94 V-0

Current Rating :

12A

Voltage :

300V

Pbfree Code :

yes

Flammability Rating :

UL94 V-0

Number of Ways :

14

ECCN Code :

EAR99

Reach Compliance Code :

Unknown

Pitch :

0.200 5.08mm

Mounting Type :

Free Hanging (In-Line)

Housing Material :

Polyamide (PA), Nylon

Screw Size :

M3

Wire Strip Length :

7mm

Wire Cross Section :

2.5 mm2

Plug Wire Entry :

180°

Wire Gauge (Max) :

30 AWG

Voltage - Rated :

250V

RoHS Status :

RoHS Compliant

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

Number of Levels :

1

Current :

15A

Factory Lead Time :

4 Weeks

Wire Gauge or Range - mm² :

0.2-2.5mm2

Voltage - IEC :

630V

Wire Gauge or Range - AWG :

12-30 AWG

Current - IEC :

12A

Published :

2011

Feature :

Retention Latches (Non-Wire Side)

Weight :

129.999998g

Number of Rows :

1

Number of Positions :

14

Connector Type :

Screw

Color :

Green

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Height :

0.591 15.00mm

Series :

COMBICON MSTBT

Wire Gauge (Min) :

12 AWG

Packaging :

Bulk

Number of Decks :

1

Mount :

Free Hanging

Additional Feature :

PA, 94V-0
