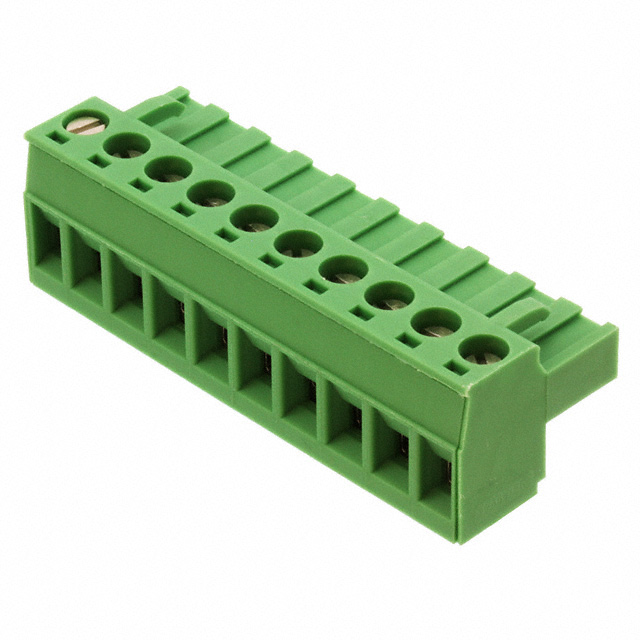

1781069

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Voltage - IEC :

630V

Factory Lead Time :

4 Weeks

Lead Free :

Lead Free

Termination Style :

Screw - Rising Cage Clamp

Weight :

129.999998g

Additional Feature :

PA, 94V-0

Housing Material :

Polyamide (PA), Nylon

Published :

2011

Number of Levels :

1

Number of Decks :

1

Type :

Plug, Female Sockets

Feature :

Retention Latches (Non-Wire Side)

Contact Plating :

Tin

Max Current Rating :

12A

Wire Cross Section :

2.5 mm2

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

Current Rating :

12A

Current :

12A

Length :

15mm

Reach Compliance Code :

Unknown

Height :

18.2mm

Wire Gauge or Range - mm² :

0.2-2.5mm2

Current - UL :

15A

Mount :

Cable, Free Hanging

Series :

COMBICON MSTBT

RoHS Status :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Ways :

10

Flammability Rating :

UL94 V-0

Voltage :

300V

HTS Code :

8536.69.40.40

Voltage - Rated :

250V

Pitch :

0.200 5.08mm

Number of Rows :

1

Wire Gauge or Range - AWG :

12-30 AWG

Insulation Height :

0.591 15.00mm

Number of Contacts :

10

Material Flammability Rating :

UL94 V-0

Mounting Type :

Free Hanging (In-Line)

Packaging :

Bulk

Width :

50.8mm

Wire Gauge (Min) :

12 AWG

Wire Strip Length :

7mm

Wire Gauge (Max) :

30 AWG

Connector Type :

Screw, Socket

Termination :

Screw

Orientation :

RIGHT ANGLE

Color :

Green

Safety Approval :

UL

Plug Wire Entry :

180°

ECCN Code :

EAR99

Screw Size :

M3

Pbfree Code :

yes
