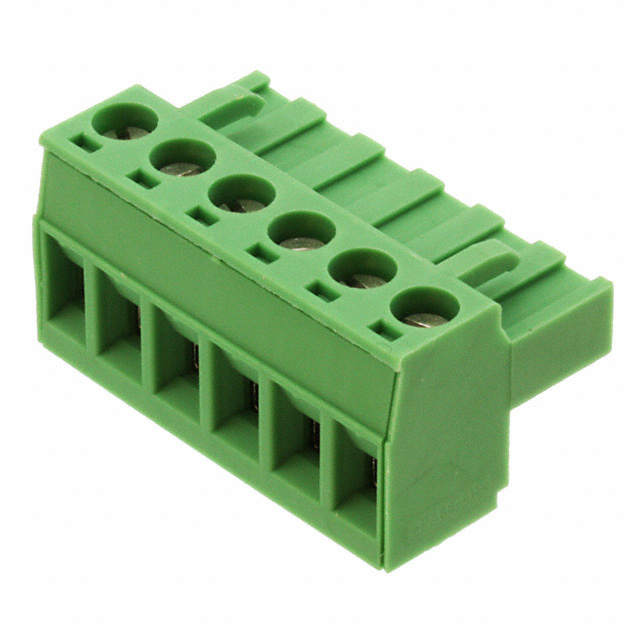

1781027

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Housing Material :

Polyamide (PA), Nylon

Number of Decks :

1

Max Supply Voltage :

250V

Number of Contacts :

6

Pbfree Code :

yes

Wire Cross Section :

2.5 mm2

Series :

COMBICON MSTBT

Current :

12A

Additional Feature :

PA, 94V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2011

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

Contact Material :

Copper

Voltage - Rated :

250V

Current - UL :

15A

Voltage :

300V

Length :

30.48mm

Contact Mating Finish :

Tin

Factory Lead Time :

4 Weeks

Safety Approval :

UL

Color :

Green

Mounting Type :

Free Hanging (In-Line)

Packaging :

Bulk

Number of Rows :

1

Wire Gauge or Range - AWG :

12-30 AWG

Termination Style :

Screw - Rising Cage Clamp

Screw Size :

M3

Weight :

129.999998g

Max Current Rating :

12A

Number of Levels :

1

Voltage - IEC :

630V

Termination :

Screw

Lead Free :

Lead Free

Wire Gauge or Range - mm² :

0.2-2.5mm2

ECCN Code :

EAR99

Height :

18.2mm

Type :

Plug, Female Sockets

Pitch :

0.200 5.08mm

Width :

30.48mm

Plug Wire Entry :

180°

Mount :

Cable, Free Hanging

Insulation Height :

0.591 15.00mm

Wire Gauge (Max) :

30 AWG

Connector Type :

Screw, Socket

Feature :

Retention Latches (Non-Wire Side)

Current Rating :

12A

Number of Ways :

6

Orientation :

RIGHT ANGLE

Wire Gauge (Min) :

12 AWG

Wire Strip Length :

7mm

Depth :

18.2mm

Flammability Rating :

UL94 V-0

Material Flammability Rating :

UL94 V-0

RoHS Status :

RoHS Compliant
