Mfr.Part #
1658013-3
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN PLUG 120POS SMD GOLD
Stock
114
In Stock :
114

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Arrays, Edge Type, Mezzanine (Board to Board)
DIN Conformance :
No
Pitch :
0.031 0.80mm
Body Depth :
0.16 inch
Height :
4.06mm
PCB Contact Pattern :
RECTANGULAR
Total Number of Contacts :
120
Filter Feature :
No
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Housing Color :
Black
Mating Alignment :
Without
Plating Thickness :
250 nm
Housing Material :
Polymer
Factory Lead Time :
11 Weeks
Option :
GENERAL PURPOSE
Board Mounting Option :
PEG
Row Spacing :
4.73 mm
Mounting Option 1 :
LOCKING
Sealable :
No
Number of Rows :
2
Contact Current Rating :
1.25A
Contact Plating :
Gold, Nickel
ELV :
Compliant
Height Above Board :
0.168 4.27mm
Gender :
Male
Operating Supply Voltage :
125V
Contact Material :
Bronze
Insulation Resistance :
5GOhm
Orientation :
Vertical
Contact Finish :
Gold
Published :
2005
Lifecycle Status :
ACTIVE (Last Updated: 4 days ago)
Min Operating Temperature :
-85°C
Contact Finish Thickness :
10.0μin 0.25μm
Durability :
100 Cycles
Number of Positions :
120
Number Of PCB Rows :
2
Connector Type :
Plug, Outer Shroud Contacts
Pbfree Code :
yes
RoHS Status :
RoHS Compliant
Dielectric Withstanding Voltage :
675VAC V
Packaging :
Tray
Reliability :
COMMERCIAL
Mounting Type :
Surface Mount
Termination :
SMD/SMT
Stack Height :
5.0038mm
Max Operating Temperature :
257°C
IEC Conformance :
No
MIL Conformance :
No
Series :
MICTOR
Impedance :
50Ohm
Feature :
Board Guide, Ground Bus (Plane)
Number of Conductors :
ONE
Contact Shape :
Square
Mixed Contacts :
No
PCB Mount Alignment :
With
Polarization Key :
POLARIZED HOUSING
Contact Finish Thickness - Mating :
249.9995 nm
Contact Pattern :
RECTANGULAR
Datasheets
1658013-3
Introducing Arrays, Edge Type, Mezzanine (Board to Board) TE Connectivity AMP Connectors 1658013-3 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, 1658013-3 pinout, 1658013-3 datasheet PDF, 1658013-3 amp .Beyond Arrays, Edge Type, Mezzanine (Board to Board) TE Connectivity AMP Connectors 1658013-3 ,we also offer 5054761010, 5035481222, AXT510124, Our vast inventory has you covered. Contact us now for immediate solutions.

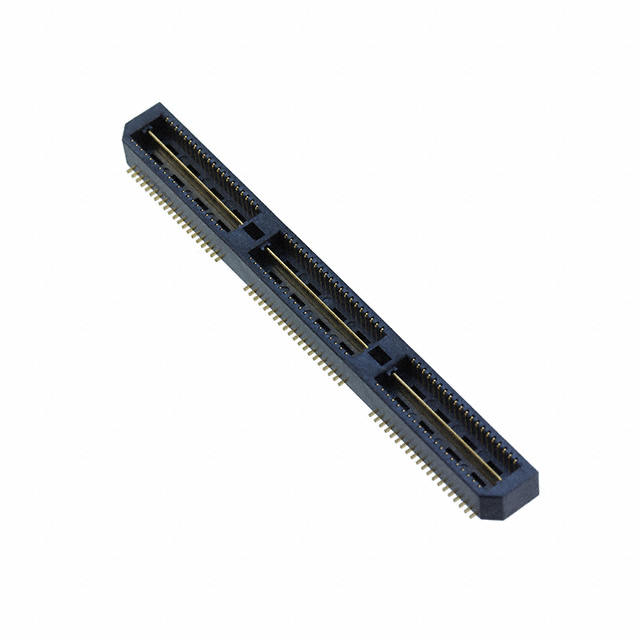

TE Connectivity AMP Connectors 1658013-3
