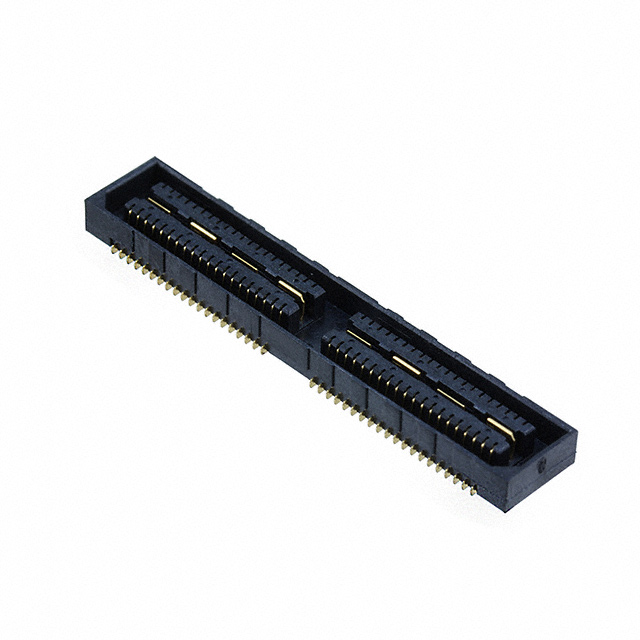

1658012-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Durability :

100 Cycles

Board Mounting Option :

PEG

Insulation Resistance :

5GOhm

Published :

2007

Stack Height :

25mm

Mounting Type :

Surface Mount

Contact Finish Thickness - Mating :

249.9995 nm

Height Above Board :

0.128 3.25mm

Housing Material :

Polymer

Number of Rows :

2

Body Depth :

0.133 inch

Contact Material :

Bronze

Number Of PCB Rows :

2

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Stack Height (Mating) :

5mm 8mm 11mm 14mm 16mm 19mm 22mm 25mm 30mm

Housing Color :

Black

Termination :

SMD/SMT

Mounting Option 1 :

LOCKING

Number of Positions :

80

Polarization Key :

POLARIZED HOUSING

PCB Contact Pattern :

RECTANGULAR

Min Operating Temperature :

-85°C

Impedance :

50Ohm

ELV :

Compliant

Contact Pattern :

RECTANGULAR

Packaging :

Tray

Operating Supply Voltage :

125V

Pitch :

0.031 0.80mm

Sealable :

No

Max Operating Temperature :

257°C

Total Number of Contacts :

80

Contact Finish :

Gold

Feature :

Board Guide, Ground Bus (Plane)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height :

3.05mm

Connector Type :

Receptacle, Center Strip Contacts

Factory Lead Time :

11 Weeks

Row Spacing :

3.463823 mm

Gender :

FEMALE

Reliability :

COMMERCIAL

Orientation :

Vertical

Contact Plating :

Gold, Nickel

Plating Thickness :

250 nm

RoHS Status :

RoHS Compliant

Number of Conductors :

ONE

PCB Mount Alignment :

With

Contact Current Rating :

1.25A

Mating Alignment :

Without

Dielectric Withstanding Voltage :

675VAC V

Contact Finish Thickness :

10.0μin 0.25μm

Series :

MICTOR
