Mfr.Part #
1658012-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN RCPT 40POS SMD GOLD
Stock
496
In Stock :
496

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Arrays, Edge Type, Mezzanine (Board to Board)
Contact Material :
Bronze
Mounting Type :
Surface Mount
Body Length or Diameter :
0.838 inch
Impedance :
50Ohm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Packaging :
Tray
Feature :
Board Guide, Ground Bus (Plane)
Height :
3.05mm
Plating Thickness :
250 nm
RoHS Status :
RoHS Compliant
ELV :
Compliant
Stack Height (Mating) :
5mm 8mm 11mm 14mm 16mm 19mm 22mm 25mm 30mm
Contact Finish Thickness :
10.0μin 0.25μm
Termination :
SMD/SMT
Insulation Resistance :
5GOhm
Durability :
100 Cycles
Orientation :
Vertical
Height Above Board :
0.128 3.25mm
Connector Type :
Receptacle, Center Strip Contacts
Stack Height :
25mm
Max Operating Temperature :
257°C
Contact Pattern :
RECTANGULAR
Contact Resistance :
15mOhm
Contact Gender :
FEMALE
Contact Finish :
Gold
Contact Finish Thickness - Mating :
249.9995 nm
Lifecycle Status :
ACTIVE (Last Updated: 1 day ago)
Max Voltage Rating (AC) :
225V
Number of Positions :
40
Row Spacing :
3.463823 mm
PCB Mount Alignment :
With
Contact Plating :
Gold, Nickel
Number of Rows :
2
Series :
MICTOR
Reliability :
COMMERCIAL
Pitch :
0.031 0.80mm
Housing Material :
Polymer
Contact Current Rating :
1.25A
Polarization Key :
POLARIZED HOUSING
Published :
2007
Factory Lead Time :
11 Weeks
Housing Color :
Black
Sealable :
No
Mating Alignment :
Without
Min Operating Temperature :
-85°C
Mount :
Surface Mount
Number Of PCB Rows :
2
Number of Conductors :
ONE
PCB Contact Pattern :
RECTANGULAR
Operating Supply Voltage :
125V
Total Number of Contacts :
40
Body Depth :
0.133 inch
Dielectric Withstanding Voltage :
675VAC V
Datasheets
1658012-1
Introducing Arrays, Edge Type, Mezzanine (Board to Board) TE Connectivity AMP Connectors 1658012-1 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, 1658012-1 pinout, 1658012-1 datasheet PDF, 1658012-1 amp .Beyond Arrays, Edge Type, Mezzanine (Board to Board) TE Connectivity AMP Connectors 1658012-1 ,we also offer 5054761010, 5035481222, AXT510124, Our vast inventory has you covered. Contact us now for immediate solutions.

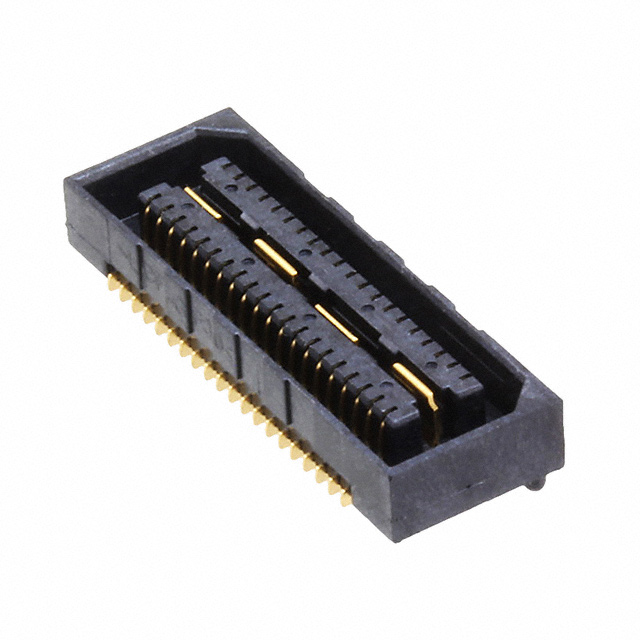

TE Connectivity AMP Connectors 1658012-1


Receptacle, Center Strip Contacts Tray 2 Rows 0.031 0.80mm Surface Mount 40 Positions MICTOR Gold SMD/SMT Bronze

1658012-1 Overview


Packaging is in the form of Receptacle, Center Strip Contacts.An orange Tray case is used to package the product.This device has a Surface Mount mounting type.Specifically, it is one of the products in the MICTOR Series.In operation, Board Guide, Ground Bus (Plane) can be maintained as long as Board Guide, Ground Bus (Plane) is unchanged.A Surface Mount socket is required for the mounting of this part.If the temperature is below 257°C, it's best to use it.-85°C is the minimum temperature for this device.This device can be used with a 125V supply, as it is designed for that operation.
