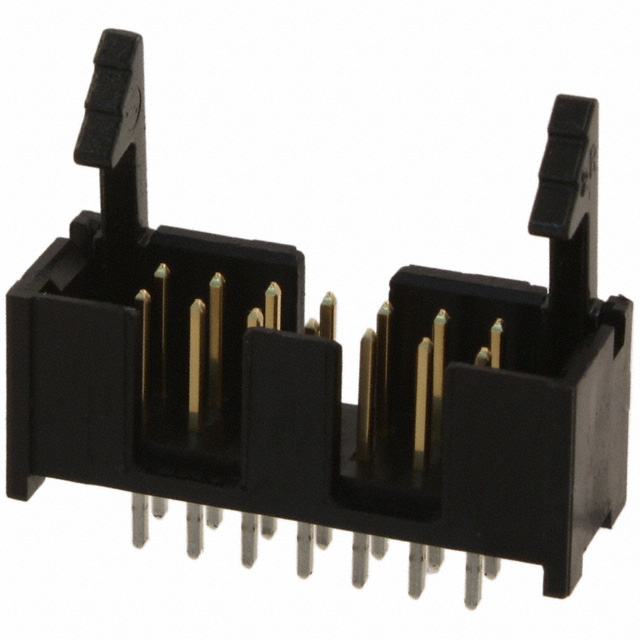

104313-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Contact Length - Post :

0.120 3.05mm

Operating Temperature :

-65°C~105°C

Lead Length :

3.048mm

ECCN Code :

EAR99

JESD-609 Code :

e0

Contact Gender :

Male

Reference Standard :

UL

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Shrouding :

Shrouded - 4 Wall

Pbfree Code :

No

Lead Free :

Contains Lead

Packaging :

Bulk

Mount :

Through Hole

ELV :

Non-Compliant

Contact Length - Mating :

0.240 6.10mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Color :

Black

Number of Positions Loaded :

All

Style :

Board to Cable/Wire

Number of Conductors :

ONE

Mating Connector Lock :

With

Contact Type :

Male Pin

Housing Material :

Thermoplastic

Plating Thickness :

30μin

Current Rating :

1A

Filter Feature :

No

Series :

AMP-Latch

Fastening Type :

Latch Lock/Eject Hooks, Short

Feature :

Keying Slot

Factory Lead Time :

13 Weeks

Insulation Height :

0.385 9.78mm

Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole

Contact Current Rating :

1A

Insulation Resistance :

5GOhm

Contact Finish - Post :

Tin-Lead

Row Spacing - Mating :

0.100 (2.54mm)

Height :

9.77mm

Orientation :

Vertical

Mating Contact Pitch :

0.1 inch

DIN Conformance :

No

Circuit Application :

Signal

Contact Shape :

Square

Connector Type :

Header

Contact Finish Thickness - Mating :

30.0μin 0.76μm

IEC Conformance :

No

Option :

GENERAL PURPOSE

Contact Plating :

Gold

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Shrouded End Dimension :

3.81 mm

Contact Finish - Mating :

Gold or Gold-Palladium

Depth :

9.14mm

Pitch - Mating :

0.100 2.54mm

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Material Flammability Rating :

UL94 V-0

Mixed Contacts :

No

Termination :

Solder

UL Flammability Code :

94V-0

MIL Conformance :

No

Additional Feature :

LATCHED, LOW PROFILE, POLARIZED

Length :

25.4mm

Voltage - Rated :

250VAC

Number of Positions :

14

PCB Mount Retention :

Without

Number of Rows :

2

RoHS Status :

Non-RoHS Compliant

Polarization Key :

DUAL POLARIZED

Radiation Hardening :

No

Current Rating (Amps) :

1A per Contact

Contact Material :

Brass

Body Breadth :

0.36 inch

HTS Code :

8536.69.40.40

Published :

2011

Number Of PCB Rows :

2

Contact Finish Thickness - Post :

100.0μin 2.54μm

Reliability :

COMMERCIAL

PCB Contact Pattern :

RECTANGULAR
