104313-3

Share

Or copy the link below:

Mfr.Part #
104313-3
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN HEADER VERT 16POS 2.54MM
Stock
8,788
In Stock :
8,788

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Male Pins
Contact Finish - Mating :
Gold or Gold-Palladium
Contact Current Rating :
1A
Current Rating :
1A
Orientation :
Vertical
Series :
AMP-Latch
Operating Temperature :
-65°C~105°C
Contact Type :
Male Pin
Mixed Contacts :
No
Number of Positions :
16
Contact Material :
Brass
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Published :
2007
Number Of PCB Rows :
2
Insulation Resistance :
5GOhm
Contact Finish Thickness - Mating :
30.0μin 0.76μm
Filter Feature :
No
Connector Type :
Header
Lead Free :
Contains Lead
HTS Code :
8536.69.40.40
Number of Positions Loaded :
All
Additional Feature :
LATCHED, LOW PROFILE, POLARIZED
Mount :
Through Hole
DIN Conformance :
No
Fastening Type :
Latch Lock/Eject Hooks, Short
Number of Rows :
2
Contact Finish - Post :
Tin-Lead
Current Rating (Amps) :
1A per Contact
Material Flammability Rating :
UL94 V-0
Number of Conductors :
ONE
Feature :
Keying Slot
Contact Length - Mating :
0.240 6.10mm
Housing Material :
Thermoplastic
Plating Thickness :
30μin
Option :
GENERAL PURPOSE
Length :
17.78mm
Radiation Hardening :
No
Shrouded End Dimension :
3.81 mm
Body Breadth :
0.36 inch
Contact Gender :
Male
UL Flammability Code :
94V-0
Shrouding :
Shrouded - 4 Wall
Pbfree Code :
No
Reference Standard :
UL
MIL Conformance :
No
ECCN Code :
EAR99
Pitch - Mating :
0.100 2.54mm
IEC Conformance :
No
Flammability Rating :
UL94 V-0
JESD-609 Code :
e0
Packaging :
Bulk
Mating Connector Lock :
With
Circuit Application :
Signal
Contact Plating :
Gold
Insulation Color :
Black
Polarization Key :
DUAL POLARIZED
Height :
9.77mm
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Mounting Type :
Through Hole
Mating Contact Pitch :
0.1 inch
Lead Length :
3.048mm
Row Spacing - Mating :
0.100 (2.54mm)
Insulation Material :
Polyamide (PA), Nylon, Glass Filled
Style :
Board to Cable/Wire
Depth :
9.14mm
Termination :
Solder
Contact Shape :
Square
Contact Length - Post :
0.120 3.05mm
Factory Lead Time :
8 Weeks
Contact Finish Thickness - Post :
100.0μin 2.54μm
RoHS Status :
Non-RoHS Compliant
ELV :
Non-Compliant
Insulation Height :
0.385 9.78mm
PCB Contact Pattern :
RECTANGULAR
Lifecycle Status :
ACTIVE (Last Updated: 3 days ago)
PCB Mount Retention :
Without
Reliability :
COMMERCIAL
Voltage - Rated :
250VAC
Datasheets
104313-3
Introducing Headers, Male Pins TE Connectivity AMP Connectors 104313-3 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-65°C~105°C, Mounting Type:Through Hole, 104313-3 pinout, 104313-3 datasheet PDF, 104313-3 amp .Beyond Headers, Male Pins TE Connectivity AMP Connectors 104313-3 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

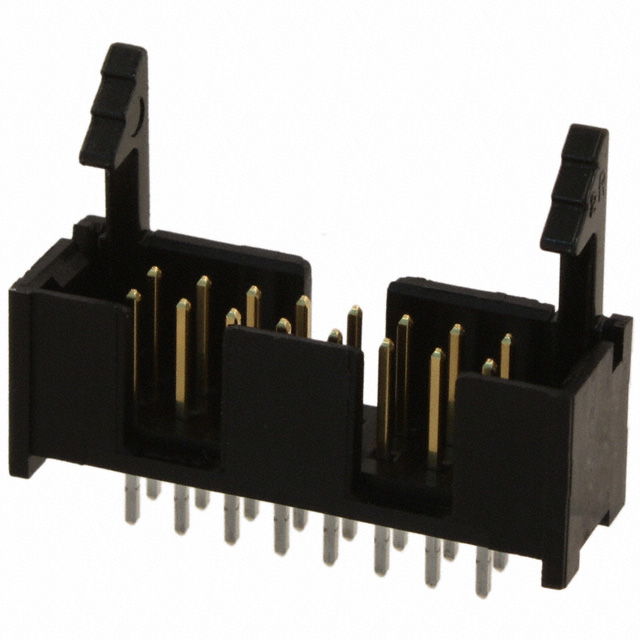

TE Connectivity AMP Connectors 104313-3


AMP-Latch Series 2-Row Header Solder Brass Bulk Through Hole Gold or Gold-Palladium Polyamide (PA), Nylon, Glass Filled 16-Position Board to Cable/Wire 0.385 9.78mm Height

104313-3 Overview


It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the AMP-Latch Series of products.In addition, there are other features such as LATCHED, LOW PROFILE, POLARIZED, to mention only a few.Its Keying Slot feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -65°C~105°C Operating Temperature.
