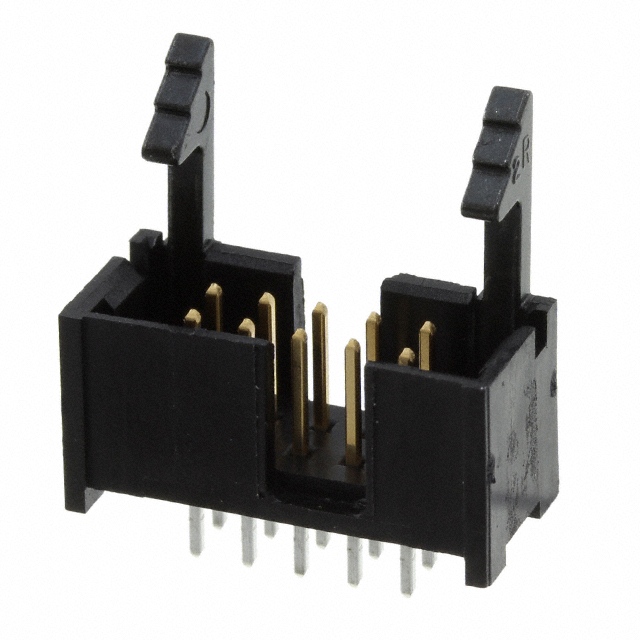

104313-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Number of Positions :

10

MIL Conformance :

No

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Polarization Key :

DUAL POLARIZED

Reliability :

COMMERCIAL

Contact Finish - Post :

Tin-Lead

Contact Length - Mating :

0.240 6.10mm

Plating Thickness :

30μin

Circuit Application :

Signal

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Pitch - Mating :

0.100 2.54mm

Number Of PCB Rows :

2

Row Spacing - Mating :

0.100 (2.54mm)

Contact Plating :

Gold

PCB Contact Pattern :

RECTANGULAR

Mounting Type :

Through Hole

Insulation Height :

0.385 9.78mm

Packaging :

Bulk

Number of Rows :

2

Filter Feature :

No

Contact Finish Thickness - Post :

100.0μin 2.54μm

Published :

2008

Current Rating (Amps) :

1A per Contact

Mating Contact Pitch :

0.1 inch

ECCN Code :

EAR99

DIN Conformance :

No

Contact Material :

Brass

Mating Connector Lock :

With

Contact Type :

Male Pin

Reference Standard :

UL

Fastening Type :

Latch Lock/Eject Hooks, Short

Connector Type :

Header

Number of Positions Loaded :

All

Length :

10.16mm

Contact Shape :

Square

Orientation :

Vertical

Material Flammability Rating :

UL94 V-0

Body Depth :

0.385 inch

Voltage - Rated :

250VAC

Current Rating :

1A

Insulation Resistance :

5GOhm

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Factory Lead Time :

10 Weeks

Insulation Color :

Black

Series :

AMP-Latch

Additional Feature :

LATCHED, LOW PROFILE, POLARIZED

HTS Code :

8536.69.40.40

Pbfree Code :

No

Termination :

Solder

Contact Finish - Mating :

Gold or Gold-Palladium

RoHS Status :

Non-RoHS Compliant

IEC Conformance :

No

Shrouding :

Shrouded - 4 Wall

Contact Finish Thickness - Mating :

30.0μin 0.76μm

JESD-609 Code :

e0

Contact Length - Post :

0.120 3.05mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Free :

Contains Lead

Style :

Board to Cable/Wire

Mounting Option 2 :

LOCKING

Number of Conductors :

ONE

Operating Temperature :

-65°C~105°C

PCB Mount Retention :

Without

Body Breadth :

0.36 inch

Feature :

Keying Slot

UL Flammability Code :

94V-0

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Housing Material :

Thermoplastic
