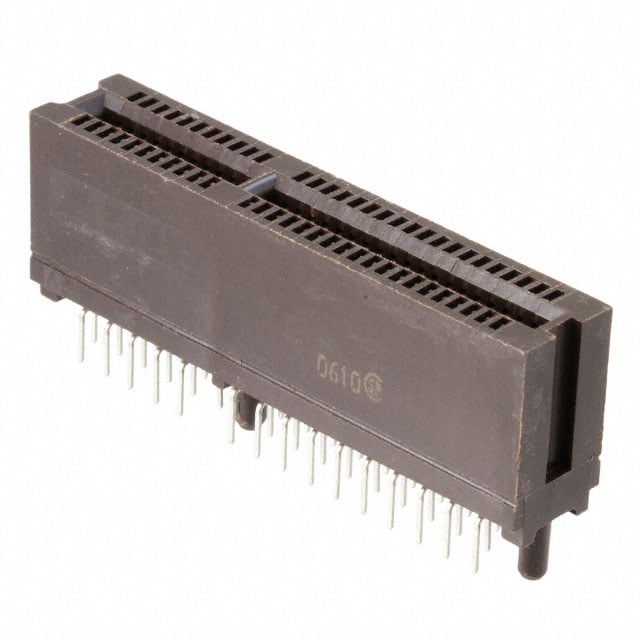

1-5650090-2

Share

Or copy the link below:

Mfr.Part #
1-5650090-2
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN EDGE DUAL FMALE 60POS 0.050
Stock
93
In Stock :
93

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Edgeboard Connectors
Reference Standard :
CSA
Series :
Standard Edge .050
Reliability :
COMMERCIAL
Contact Finish Thickness :
30.0μin 0.76μm
Feature :
Board Guide
Lead Length :
3.56mm
Height :
13.97mm
Number of Positions :
60
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Packaging :
Bulk
Body Breadth :
0.35 inch
Min Operating Temperature :
-55°C
Total Number of Contacts :
60
IEC Conformance :
No
Contact Material :
Phosphor Bronze
Dielectric Withstanding Voltage :
500VAC V
Termination :
Solder, Staggered
Number of Conductors :
ONE
Mixed Contacts :
No
Number Of PCB Rows :
4
Number of Rows :
2
Circuit Application :
Signal
Contact Pattern :
RECTANGULAR
Material - Insulation :
Thermoplastic
Mounting Type :
Through Hole
Contact Style :
BELLOWED TYPE
Contact Finish :
Gold
Insulation Resistance :
1000000000Ohm
Orientation :
Vertical
Underplate Material :
Nickel
Gender :
FEMALE
Plating Thickness :
760 nm
Additional Feature :
POLARIZED
Read Out :
Dual
Filter Feature :
No
Card Thickness :
0.062 1.57mm
Color :
Brown
JESD-609 Code :
e3
Lifecycle Status :
ACTIVE (Last Updated: 3 days ago)
Current Rating :
1A
Connector Type :
Connector, Receptacle, Socket
Published :
2009
Durability :
100 Cycles
Contact Current Rating :
1A
MIL Conformance :
No
ELV :
Compliant
Operating Supply Voltage :
203V
Mount :
Through Hole
Body Depth :
0.61 inch
Max Voltage Rating (AC) :
203V
Option :
GENERAL PURPOSE
Max Operating Temperature :
85°C
Rated Current (Signal) :
1A
Pitch :
0.050 1.27mm
RoHS Status :
RoHS Compliant
Contact Plating :
Tin, Gold
Length - Termination :
0.14 inch
Row Spacing :
1.27 mm
Contact Resistance :
30mOhm
DIN Conformance :
No
Card Type :
Non Specified - Dual Edge
Factory Lead Time :
17 Weeks
Body Length or Diameter :
1.84 inch
Datasheets
1-5650090-2
Introducing Edgeboard Connectors TE Connectivity AMP Connectors 1-5650090-2 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, 1-5650090-2 pinout, 1-5650090-2 datasheet PDF, 1-5650090-2 amp .Beyond Edgeboard Connectors TE Connectivity AMP Connectors 1-5650090-2 ,we also offer SM3ZS067U215AER1500, 1759547-1, 1-2199230-6, Our vast inventory has you covered. Contact us now for immediate solutions.
