Mfr.Part #
1-5646513-9
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description

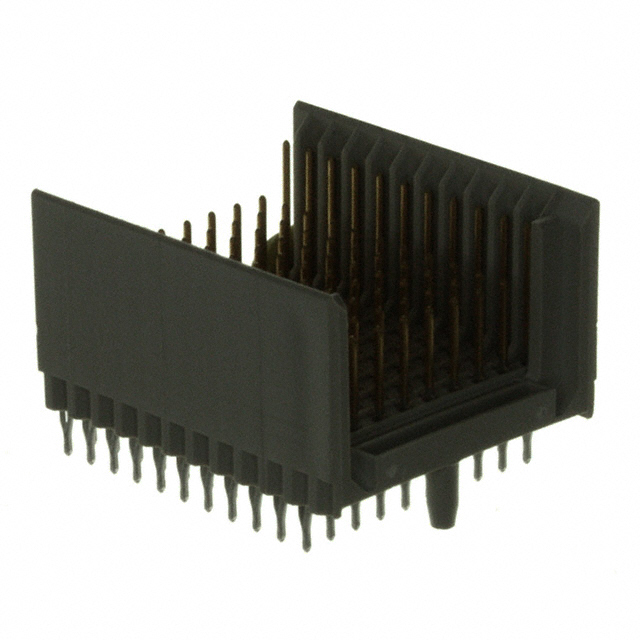

CONN HEADER 110POS 2MM PRESS-FIT
Stock
49,085
In Stock :
49,085

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Hard Metric, Standard
Contact Finish :
Gold
Option :
GENERAL PURPOSE
Orientation :
Vertical
Packaging :
Tube
Connector Type :
Header, Male Pins
Shielding :
Unshielded
Reliability :
COMMERCIAL
Plating Thickness :
380 nm
PCB Contact Pattern :
RECTANGULAR
DIN Conformance :
No
Termination :
Press-Fit
MIL Conformance :
No
Current Rating :
1.5A
Number of Positions Loaded :
All
Insulation Resistance :
1000000000Ohm
Max Current Rating :
1.5A
Polarization Key :
POLARIZED HOUSING
Dielectric Withstanding Voltage :
750VAC V
Number of Rows :
8 + 2
Mounting Type :
Through Hole
Contact Finish Thickness :
30.0μin 0.76μm
Number of Conductors :
ONE
Operating Temperature :
-55°C~125°C
Connector Style :
F 11
Mixed Contacts :
No
Housing Material :
Polyester
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Mount :
Through Hole
Insulator Color :
Gray
ELV :
Compliant
Additional Feature :
SHROUDED
ECCN Code :
EAR99
Body/Shell Style :
PLUG
Flammability Rating :
UL94 V-0
HTS Code :
8536.69.40.40
Circuit Application :
Signal
Depth :
21.4mm
Withdrawl Force-Min :
.139 N
Insertion Force-Max :
.7506 N
Voltage - Rated :
500Vrms
Durability :
250 Cycles
RoHS Status :
RoHS Compliant
Lifecycle Status :
ACTIVE (Last Updated: 21 hours ago)
Lead Free :
Not Applicable
Published :
2009
Filter Feature :
No
Number of Positions :
110 (88 + 22 Ground)
Mating Contact Row Spacing :
0.079 inch
Feature :
Board Guide
Reference Standard :
UL
Number of Columns :
11
Contact Pattern :
RECTANGULAR
PCB Contact Row Spacing :
2.0066 mm
Body Breadth :
0.842 inch
Contact Material :
Bronze
Number of Contacts :
88
Pitch :
0.079 2.00mm
Sealable :
No
Contact Style :
SQ PIN-SKT
IEC Conformance :
No
Length :
24.9mm
Gender :
Male
Pbfree Code :
yes
Series :
Z-PACK
Factory Lead Time :
11 Weeks
Connector Usage :
Backplane
Housing Color :
Grey
