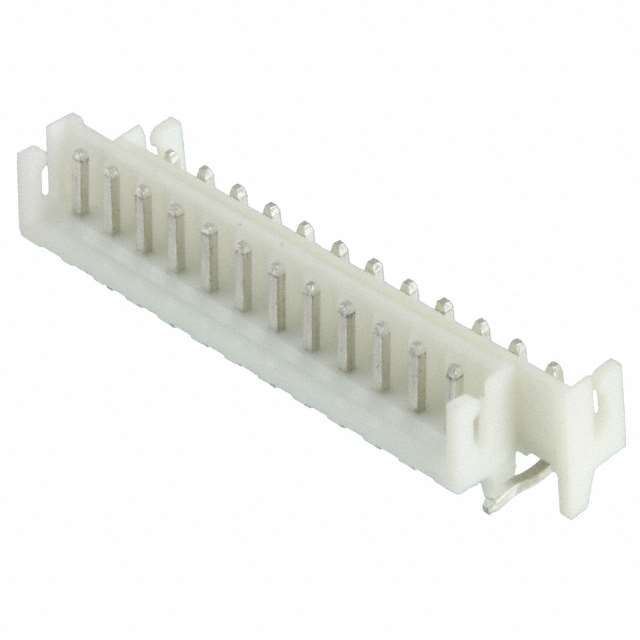

1-440053-2

Share

Or copy the link below:

Mfr.Part #
1-440053-2
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN HEADER R/A 12POS 2.5MM
Stock
15,165
In Stock :
15,165

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Male Pins
Contact Length - Post :
0.134 3.40mm
Contact Plating :
Brass, Tin
Min Operating Temperature :
-25°C
Contact Current Rating :
3A
Shrouding :
Shrouded - 3 Wall
Max Voltage Rating (AC) :
250V
Max Operating Temperature :
85°C
Flammability Rating :
UL94 V-0
Insulation Diameter :
1.9 mm
Operating Temperature :
-25°C~85°C
Lifecycle Status :
ACTIVE (Last Updated: 3 days ago)
Contact Resistance :
20mOhm
PCB Mount Retention :
With
Termination :
Press-Fit, Solder
Contact Gender :
Male
Contact Material :
Brass
Orientation :
RIGHT ANGLE
Published :
2010
Length :
32.5mm
Current Rating :
3A
PCB Thickness :
1.6mm
Wire/Cable Type :
Discrete
Number of Rows :
1
Operating Supply Voltage :
250V
Number of Contacts :
12
Sealable :
No
Factory Lead Time :
13 Weeks
Lead Length :
3.4036mm
Connector Type :
Header
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Contact Finish - Post :
Tin
Number of Positions Loaded :
All
PCB Mount Alignment :
Without
Voltage - Rated :
250V
Mating Retention :
Without
Pitch - Mating :
0.098 2.50mm
Plating :
Tin
Wire/Cable Gauge :
22 AWG
Style :
Board to Cable/Wire
Width :
8.2042mm
PCB Mounting Orientation :
RIGHT ANGLE
Circuit Application :
Signal
Contact Finish - Mating :
Tin
Material Flammability Rating :
UL94 V-0
Insulation Material :
Polyamide (PA66), Nylon 6/6
Radiation Hardening :
No
Depth :
8.2mm
Pitch :
2.5mm
Contact Shape :
Square
RoHS Status :
RoHS Compliant
Housing Material :
Nylon
Current Rating (Amps) :
3A
Number of Positions :
12
Mount :
Through Hole
Color :
Natural
Packaging :
Bulk
Insulation Color :
Natural
Housing Color :
Natural
Contact Finish Thickness - Mating :
2.032μm
Contact Type :
Male Pin
Mating Post Length :
4mm
Contact Length - Mating :
0.157 4.00mm
Insulation Height :
0.165 4.20mm
Fastening Type :
Friction Lock
Height :
4.191mm
Mounting Type :
Through Hole, Right Angle
Series :
High Performance Interconnect (HPI)
Length - Tail :
3.4mm
Applications :
Automotive, General Purpose, Industrial, Medical
Datasheets
1-440053-2
Introducing Headers, Male Pins TE Connectivity AMP Connectors 1-440053-2 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-25°C~85°C, Mounting Type:Through Hole, Right Angle, 1-440053-2 pinout, 1-440053-2 datasheet PDF, 1-440053-2 amp .Beyond Headers, Male Pins TE Connectivity AMP Connectors 1-440053-2 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 1-440053-2


High Performance Interconnect (HPI) Series 1-Row Header Press-Fit, Solder Brass Bulk Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 12-Position Board to Cable/Wire 0.165 4.20mm Height

1-440053-2 Overview


The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the High Performance Interconnect (HPI) Series.When the temperature is below 85°C, it is best to use it.A minimum operating temperature of -25°C is required for this device.The device could be used for the following application: Automotive, General Purpose, Industrial, Medical.Part Through Hole is mounted to the part.250V is the operating supply voltage for this memory.As a result, the device runs at -25°C~85°C Operating Temperature.

1-440053-2 Features


High Performance Interconnect (HPI) series


1-440053-2 Applications


There are a lot of TE Connectivity AMP Connectors
1-440053-2 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
