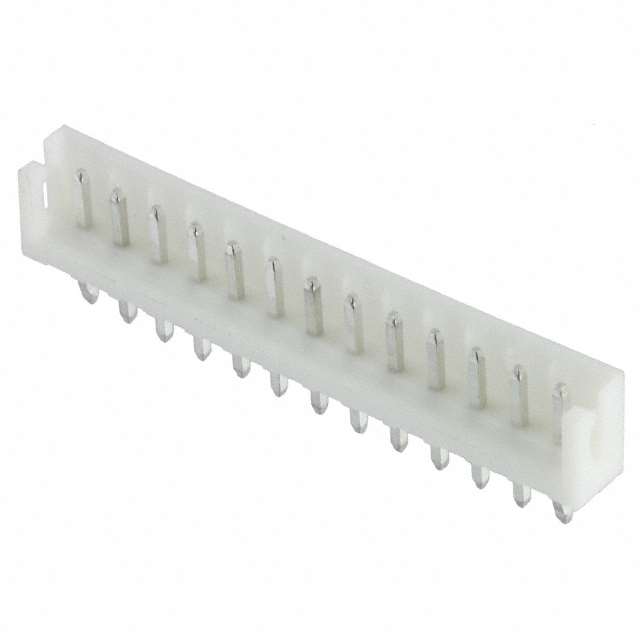

1-440052-3
Or copy the link below:
- Mfr.Part #
- 1-440052-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 13POS 2.5MM
- Stock
- 42,176
- In Stock ：
- 42,176
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Mating Post Length :
- 3.45mm
- Contact Length - Mating :
- 0.136 3.45mm
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mating Retention :
- Without
- Operating Temperature :
- -25°C~85°C
- Length :
- 35.0012mm
- PCB Thickness :
- 1.6mm
- DIN Conformance :
- No
- Current Rating :
- 3A
- Overall Contact Length :
- 0.335 8.51mm
- UL Flammability Code :
- 94V-0
- ELV :
- Compliant
- Height :
- 5.9944mm
- Mount :
- Through Hole
- Max Voltage Rating (AC) :
- 250V
- Polarization Key :
- POLARIZED HOUSING
- Operating Supply Voltage :
- 250V
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- Contact Length - Post :
- 0.134 3.40mm
- Contact Shape :
- Square
- Insulation Height :
- 0.236 6.00mm
- Insertion Force-Max :
- 48.0384 N
- PCB Mount Retention :
- With
- Width :
- 3.8mm
- Pitch - Mating :
- 0.098 2.50mm
- Fastening Type :
- Friction Lock
- Style :
- Board to Cable/Wire
- Factory Lead Time :
- 13 Weeks
- Insulation Diameter :
- 1.9 mm
- Lead Length :
- 3.4036mm
- ECCN Code :
- EAR99
- IEC Conformance :
- No
- Length - Tail :
- 3.4mm
- Number of Conductors :
- ONE
- Filter Feature :
- No
- Orientation :
- Vertical
- Rated Current (Signal) :
- 3A
- Reliability :
- COMMERCIAL
- Contact Current Rating :
- 3A
- RoHS Status :
- RoHS Compliant
- Wire/Cable Type :
- Discrete
- Insulation Color :
- Natural
- PCB Contact Pattern :
- RECTANGULAR
- Number of Rows :
- 1
- Published :
- 2008
- Shrouding :
- Shrouded - 3 Wall
- Contact Plating :
- Brass, Tin
- Sealable :
- No
- Insulation Material :
- Thermoplastic
- Number of Positions :
- 13
- Connector Type :
- Header
- Mixed Contacts :
- No
- Contact Finish - Mating :
- Tin
- Mounting Type :
- Through Hole
- HTS Code :
- 8536.69.40.40
- Termination :
- Press-Fit, Solder
- Number Of PCB Rows :
- 1
- Mating Contact Pitch :
- 0.098 inch
- Contact Material :
- Brass
- Contact Type :
- Male Pin
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Housing Material :
- Nylon
- Depth :
- 3.8mm
- Series :
- High Performance Interconnect (HPI)
- Terminal Pitch :
- 2.5mm
- Material Flammability Rating :
- UL94 V-0
- Reference Standard :
- UL
- Number of Positions Loaded :
- All
- MIL Conformance :
- No
- Wire/Cable Gauge :
- 22 AWG
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Flammability Rating :
- UL94 V-0
- Datasheets
- 1-440052-3
High Performance Interconnect (HPI) Series 1-Row Header Press-Fit, Solder Brass Bulk Through Hole Tin Thermoplastic 13-Position Board to Cable/Wire 0.236 6.00mm Height
1-440052-3 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the High Performance Interconnect (HPI) Series.There is the possibility of using the device for Automotive, General Purpose, Industrial, Medical.By Through Hole, the part is mounted.The operating voltage of this memory is 250V.Operating temperature is set to -25°C~85°C.
1-440052-3 Features
High Performance Interconnect (HPI) series
1-440052-3 Applications
There are a lot of TE Connectivity AMP Connectors
1-440052-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
