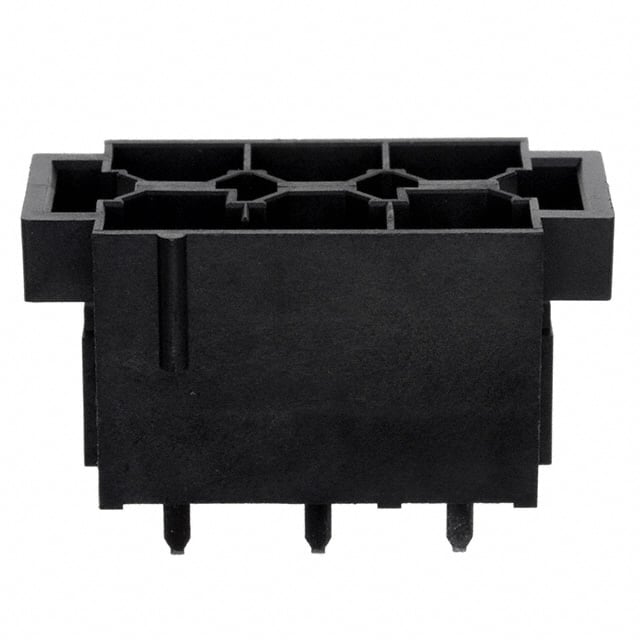

0439151107
Or copy the link below:
- Mfr.Part #
- 0439151107
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 10MM
- Stock
- 48,049
- In Stock ：
- 48,049
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Housing Color :
- Black
- Applications :
- Automotive, General Purpose, Industrial, Medical, Telecommunications
- Lead Pitch :
- 10mm
- Number of Positions :
- 8
- Max Operating Temperature :
- 105°C
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Reach Compliance Code :
- Unknown
- Material Flammability Rating :
- UL94 V-0
- Series :
- Mini-Fit Sr 43915
- RoHS Status :
- ROHS3 Compliant
- Feature :
- Board Guide
- Mount :
- Through Hole
- Contact Shape :
- RECTANGULAR
- Contact Resistance :
- 1.5mOhm
- Connector Type :
- Header
- Mounting Type :
- Through Hole
- Packaging :
- Tray
- Factory Lead Time :
- 5 Weeks
- Fastening Type :
- Latch Holder
- Current Rating :
- 37A
- Contact Length - Post :
- 0.201 5.11mm
- Contact Finish - Mating :
- Tin
- Min Operating Temperature :
- -40°C
- Style :
- Board to Cable/Wire
- Voltage - Rated DC :
- 600V
- Insulation Resistance :
- 1GOhm
- Number of Positions Loaded :
- All
- Shrouding :
- Shrouded - 4 Wall
- Housing Material :
- Nylon
- Number of Rows :
- 2
- Length :
- 41.41mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Height :
- 0.827 21.00mm
- Depth :
- 19.16mm
- Pitch - Mating :
- 0.394 10.00mm
- Insulation Material :
- Polyamide (PA46), Nylon 4/6, Glass Filled
- Pbfree Code :
- yes
- Contact Type :
- Male Pin
- Orientation :
- Vertical
- Termination :
- Solder
- Contact Material :
- Copper Zirconium Alloy
- Datasheets
- 0439151107
Mini-Fit Sr 43915 Series 2-Row Header Solder Copper Zirconium Alloy Tray Through Hole Tin Polyamide (PA46), Nylon 4/6, Glass Filled 8-Position Board to Cable/Wire 0.827 21.00mm Height
0439151107 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Tray case is necessary to package the product.There is a product in the Mini-Fit Sr 43915 Series.When the temperature is below 105°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.The device could be used for the following application: Automotive, General Purpose, Industrial, Medical, Telecommunications.There are a number of advantages to its Board Guide feature.Part Through Hole is mounted to the part.
0439151107 Features
Mini-Fit Sr 43915 series
0439151107 Applications
There are a lot of Molex
0439151107 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
