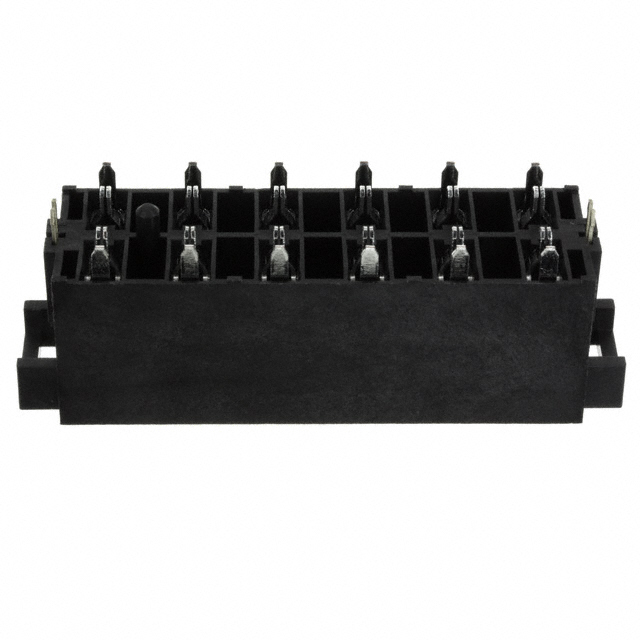

0439151104
Or copy the link below:
- Mfr.Part #
- 0439151104
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 12POS 10MM
- Stock
- 24,942
- In Stock ：
- 24,942
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Terminations :
- 12
- Applications :
- Automotive, General Purpose, Industrial, Medical, Telecommunications
- Fastening Type :
- Latch Holder
- Contact Finish - Post :
- Tin
- Mount :
- Through Hole
- Length :
- 61.41mm
- Shrouding :
- Shrouded - 4 Wall
- Style :
- Board to Cable/Wire
- Packaging :
- Tray
- Termination :
- Solder
- Connector Type :
- Header
- Contact Type :
- Male Pin
- Number of Contacts :
- 12
- Pitch :
- 10mm
- Contact Material :
- Copper Zirconium Alloy
- Number of Positions :
- 12
- Depth :
- 19.16mm
- Number of Positions Loaded :
- All
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Contact Finish - Mating :
- Tin
- Factory Lead Time :
- 5 Weeks
- Feature :
- Board Guide
- Contact Shape :
- RECTANGULAR
- Material Flammability Rating :
- UL94 V-0
- Series :
- Mini-Fit Sr 43915
- Min Operating Temperature :
- -40°C
- Orientation :
- Vertical
- Max Operating Temperature :
- 105°C
- Contact Plating :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Color :
- Black
- Pitch - Mating :
- 0.394 10.00mm
- Mounting Type :
- Through Hole
- Number of Rows :
- 2
- Contact Resistance :
- 1.5mOhm
- Insulation Height :
- 0.827 21.00mm
- Contact Length - Post :
- 0.138 3.50mm
- RoHS Status :
- ROHS3 Compliant
- Insulation Color :
- Black
- Housing Material :
- Nylon
- Color :
- Black
- Number of Ports :
- 1
- Insulation Material :
- Polyamide (PA46), Nylon 4/6, Glass Filled
- Datasheets
- 0439151104
Mini-Fit Sr 43915 Series 2-Row Header Solder Copper Zirconium Alloy Tray Through Hole Tin Polyamide (PA46), Nylon 4/6, Glass Filled 12-Position Board to Cable/Wire 0.827 21.00mm Height
0439151104 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number Mini-Fit Sr 43915 belongs to the Mini-Fit Sr 43915 Series.Whenever the temperature is below 105°C, it's best.There is a minimum temperature requirement of [0°C] for this device.There are 1 ports available for managing a variety of tasks on this device.In addition to Automotive, General Purpose, Industrial, Medical, Telecommunications, there are other possible applications for the device.In many ways, it is more powerful due to its Board Guide feature.There is a Through Hole mount on the part.The chip terminates at 12.
0439151104 Features
12 basic kinds of terminations
Mini-Fit Sr 43915 series
0439151104 Applications
There are a lot of Molex
0439151104 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
