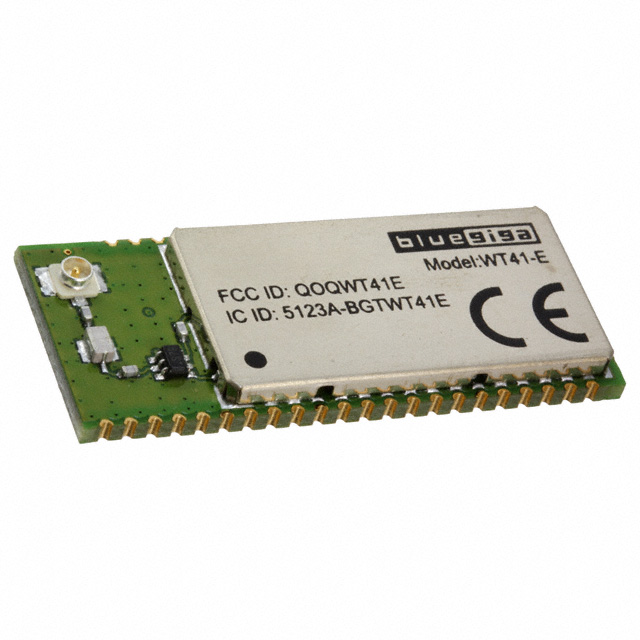

WT41-E-AI4
Or copy the link below:
- Mfr.Part #
- WT41-E-AI4
- Manufacturer
- Silicon Labs
- Package / Case
- Module
- Datasheet
- Download
- Description
- RX TXRX MOD BLUETOOTH U.FL SMD
- Stock
- 23,888
- In Stock ：
- 23,888
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Silicon Labs
- Product Category :
- RF Transceiver Modules and Modems
- Published :
- 2013
- Antenna Type :
- Antenna Not Included, U.FL
- Interface :
- GPIO, SPI, UART, USB
- Sensitivity (dBm) :
- -92 dBm
- Number of Functions :
- 1
- Packaging :
- Strip
- Mount :
- Surface Mount
- Mounting Type :
- Surface Mount
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Data Rate :
- 3Mbps
- Width :
- 14.5mm
- Number of Terminations :
- 57
- Frequency :
- 2.4GHz
- Terminal Form :
- NO LEAD
- Operating Temperature :
- -40°C~85°C
- Voltage - Supply :
- 3V~3.6V
- Operating Supply Voltage :
- 3.3V
- Telecom IC Type :
- TELECOM CIRCUIT
- Serial Interfaces :
- PIO, SPI, UART, USB
- RF Family/Standard :
- Bluetooth
- Power - Output :
- 19dBm
- Height Seated (Max) :
- 3.35mm
- Current - Receiving :
- 52.6mA
- JESD-30 Code :
- R-XQMA-N57
- Supply Voltage :
- 3.3V
- HTS Code :
- 8542.39.00.01
- Length :
- 35.55mm
- RoHS Status :
- RoHS Compliant
- Terminal Position :
- QUAD
- Terminal Pitch :
- 1.5mm
- Current - Transmitting :
- 51.6mA~120mA
- Protocol :
- Bluetooth v2.1 + EDR, Class 1
- Package / Case :
- Module
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Datasheets
- WT41-E-AI4
WT41-E-AI4 Documents
2.4GHz Bluetooth -40°C~85°C 3V~3.6V PIO, SPI, UART, USB Strip Antenna Not Included, U.FL 3Mbps 19dBm Bluetooth v2.1 + EDR, Class 1 Module
WT41-E-AI4 Overview
We are using Surface Mount as the RF Transceiver' mounting method.A Strip package is used in this RF Transceiver module to optimize performance.In this RF Transceiver module, 57 terminations are present.Keeping Transceiver's operating temperature at -40°C~85°C is essential when operating.3V~3.6V voltage is available from the RF Transceiver.2.4GHz Hz is the frequency at which the Transceiver operates.There are many applications that use the Transceiver with Surface Mount mounted.
WT41-E-AI4 Features
Surface Mount
Strip package
57 terminations
3V~3.6V volts
WT41-E-AI4 Applications
There are a lot of Silicon Labs
WT41-E-AI4 RF Transceiver Modules applications.
- Secure Payment
- Home and Security
- Health and Fitness
- Industrial and Data Logger
- LED Lighting
- Utility and Smart Energy
- Thermostats
- Smart Meters
- HVAC
- Consumer Electronics
