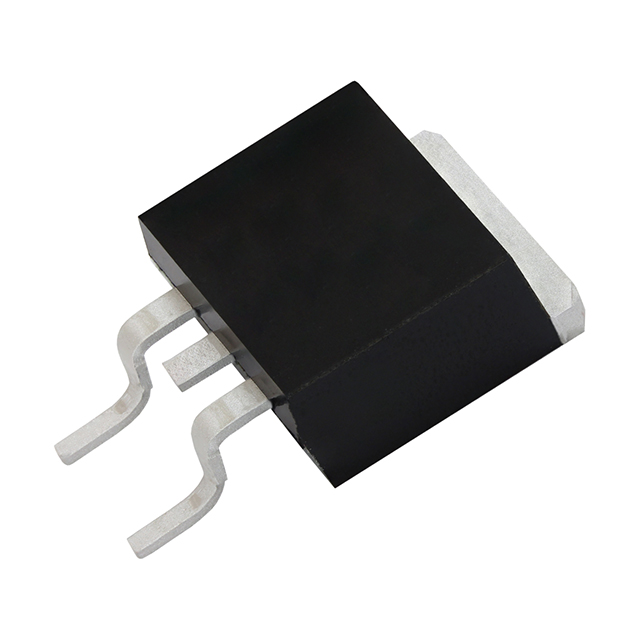

VS-25CTQ045SLHM3

Manufacturer :

Vishay

Product Category :

Diodes - Rectifiers - Arrays

Base Product Number :

VS-25C

Approvals :

C-Tick, CE, cUL, UL

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr :

1.75 mA @ 45 V

IP Rating :

IP54

Package / Case :

TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Package Type :

D2PAK

Mounting Type :

Surface Mount

Operating Temperature - Junction :

-55°C ~ 150°C

Diode Type :

Schottky

Temperature Range :

-5-140 °F

Mounting :

Direct Coupled

Supplier Device Package :

TO-263AB (D²PAK)

Series :

-

Current - Average Rectified (Io) (per Diode) :

30A

Package :

Tape and Reel (TR)

Qualification :

AEC-Q101

Repetitive Peak Reverse Voltage :

45V

Diode Configuration :

1 Pair Common Cathode

Feedback :

2-10 VDC

Rectifier Type :

Schottky Rectifier

Voltage - Forward (Vf) (Max) @ If :

710 mV @ 30 A

Product Status :

Active

Voltage - DC Reverse (Vr) (Max) :

45 V

Shaft Size :

Square 3/8-11/16 , Round 3/8-1-1/16

Manufacturer :

Honeywell
