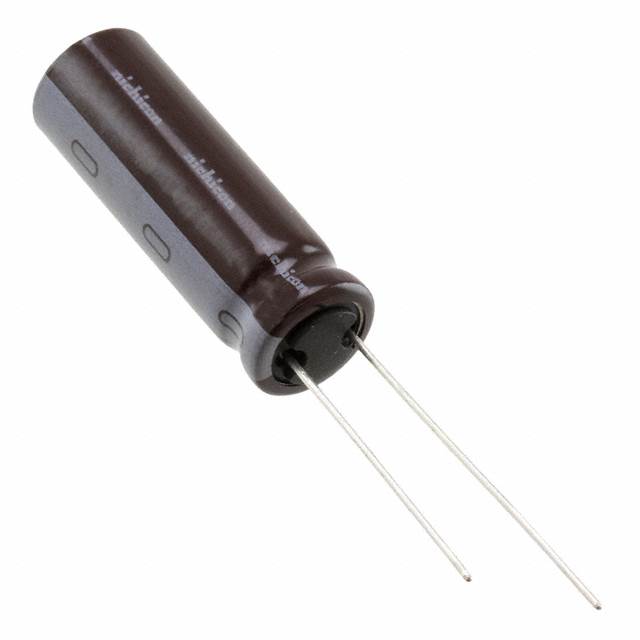

UPZW6220MPD

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Lead Pitch :

5.0038mm

Terminal Pitch :

5mm

Diameter :

10mm

Mount :

Through Hole

Series :

UPZ

Length :

31.5mm

Size / Dimension :

0.394Dia 10.00mm

Tan Delta :

0.2

Height Seated (Max) :

1.319 33.50mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Finish :

Matte Tin (Sn)

Pbfree Code :

yes

Applications :

GENERAL PURPOSE

RoHS Status :

ROHS3 Compliant

Leakage Current :

469.6μA

Ripple Current @ High Frequency :

300mA @ 10kHz

JESD-609 Code :

e3

Polarization :

Polar

ECCN Code :

EAR99

Number of Terminations :

2

Feature :

GENERAL PURPOSE

Ripple Current :

200mA

Dielectric Material :

ALUMINUM (WET)

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing :

0.197 5.00mm

Operating Temperature :

-25°C~105°C

Terminal Shape :

Wire

HTS Code :

8532.22.00

Mounting Type :

Through Hole

Tolerance :

±20%

Life (Hours) :

2000 hours

Capacitance :

22µF

Factory Lead Time :

17 Weeks

Package / Case :

Radial, Can

Lifetime @ Temp :

2000 Hrs @ 105°C

Published :

2015

Ripple Current @ Low Frequency :

200mA @ 120Hz

Voltage - Rated DC :

420V

Packaging :

Bulk

Termination :

Radial
