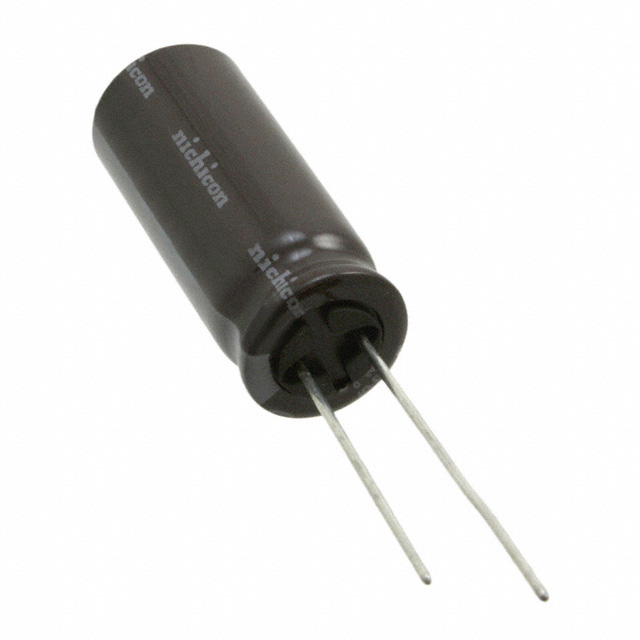

UPT2W270MHD

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Height :

31.5mm

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Packaging :

Bulk

Capacitance :

27μF

Ripple Current :

250mA

Feature :

GENERAL PURPOSE

Mounting Type :

Through Hole

Dielectric Material :

ALUMINUM (WET)

Operating Temperature :

-25°C~105°C

Leakage Current :

739μA

Mount :

Through Hole

Dissipation Factor :

0.2 %

Terminal Finish :

Matte Tin (Sn)

Voltage - Rated DC :

450V

Pbfree Code :

yes

Polarity :

POLARIZED

Series :

UPT

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

17 Weeks

Package / Case :

Radial, Can

Published :

2009

Lead Spacing :

0.197 5.00mm

ECCN Code :

EAR99

Ripple Current @ Low Frequency :

250mA @ 120Hz

Lead Pitch :

5.0038mm

Diameter :

12.5mm

Applications :

GENERAL PURPOSE

Number of Terminations :

2

JESD-609 Code :

e3

Lifetime @ Temp :

5000 Hrs @ 105°C

Tan Delta :

0.2

Termination :

Radial

Ripple Current @ High Frequency :

400mA @ 10kHz

Size / Dimension :

0.492Dia 12.50mm

Terminal Shape :

Wire

Height Seated (Max) :

1.299 33.00mm

Tolerance :

±20%

Life (Hours) :

5000 hours

RoHS Status :

ROHS3 Compliant

HTS Code :

8532.22.00
