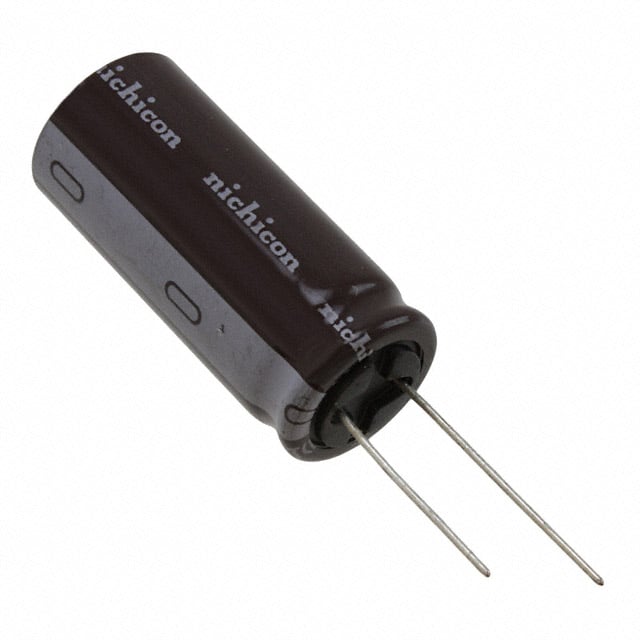

UPT2P331MHD

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Life (Hours) :

5000 hours

Height Seated (Max) :

1.634 41.50mm

Number of Terminations :

2

Tolerance :

±20%

Termination :

Radial

JESD-609 Code :

e3

Packaging :

Bulk

Voltage - Rated :

220V

Dielectric Material :

ALUMINUM (WET)

Ripple Current @ Low Frequency :

1.01A @ 120Hz

Lifetime @ Temp :

5000 Hrs @ 105°C

ECCN Code :

EAR99

Series :

UPT

Lead Pitch :

7.493mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-25°C~105°C

Tan Delta :

0.12

Pbfree Code :

yes

Package / Case :

Radial, Can

Leakage Current :

4.366mA

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Published :

2015

Ripple Current :

1.01A

Diameter :

18mm

Applications :

GENERAL PURPOSE

Length :

40mm

Polarization :

Polar

Size / Dimension :

0.709Dia 18.00mm

Mounting Type :

Through Hole

Mount :

Through Hole

Feature :

GENERAL PURPOSE

Factory Lead Time :

17 Weeks

Ripple Current @ High Frequency :

1.616A @ 10kHz

HTS Code :

8532.22.00

Terminal Finish :

Matte Tin (Sn)

RoHS Status :

ROHS3 Compliant

Terminal Pitch :

7.5mm

Rated (DC) Voltage (URdc) :

220V

Lead Spacing :

0.295 7.50mm

Capacitance :

330µF

Terminal Shape :

Wire
