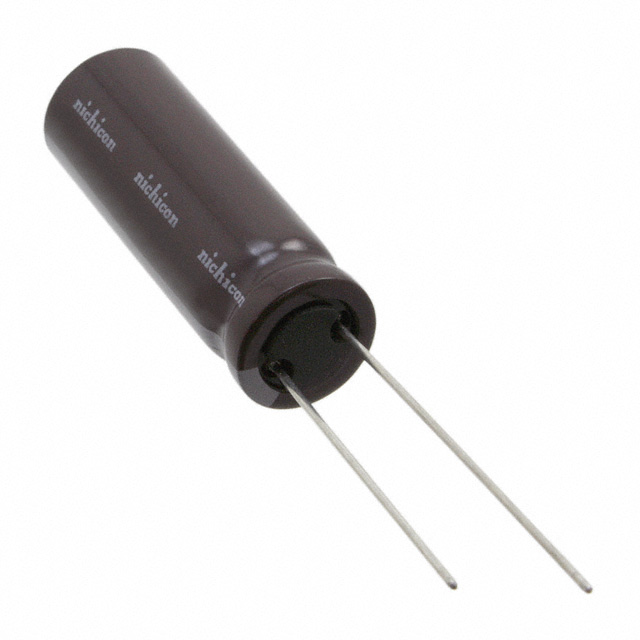

UPT2D680MPD

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Lead Pitch :

5.0038mm

Polarity :

POLARIZED

Capacitance :

68µF

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

HTS Code :

8532.22.00

Lifetime @ Temp :

5000 Hrs @ 105°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

UPT

Number of Terminations :

2

Height Seated (Max) :

1.299 33.00mm

Pbfree Code :

yes

Packaging :

Bulk

Leakage Current :

826μA

Tan Delta :

0.12

Dielectric Material :

ALUMINUM (WET)

Feature :

GENERAL PURPOSE

Applications :

GENERAL PURPOSE

ECCN Code :

EAR99

Factory Lead Time :

17 Weeks

Terminal Shape :

Wire

Voltage - Rated DC :

200V

Termination :

Radial

Operating Temperature :

-25°C~105°C

Mounting Type :

Through Hole

Tolerance :

±20%

Package / Case :

Radial, Can

Lead Spacing :

0.197 5.00mm

Ripple Current @ Low Frequency :

350mA @ 120Hz

Height :

31.5mm

RoHS Status :

ROHS3 Compliant

Published :

2009

Terminal Finish :

Matte Tin (Sn)

Life (Hours) :

5000 hours

Mount :

Through Hole

Ripple Current :

350mA

Diameter :

10mm

JESD-609 Code :

e3

Size / Dimension :

0.394Dia 10.00mm
