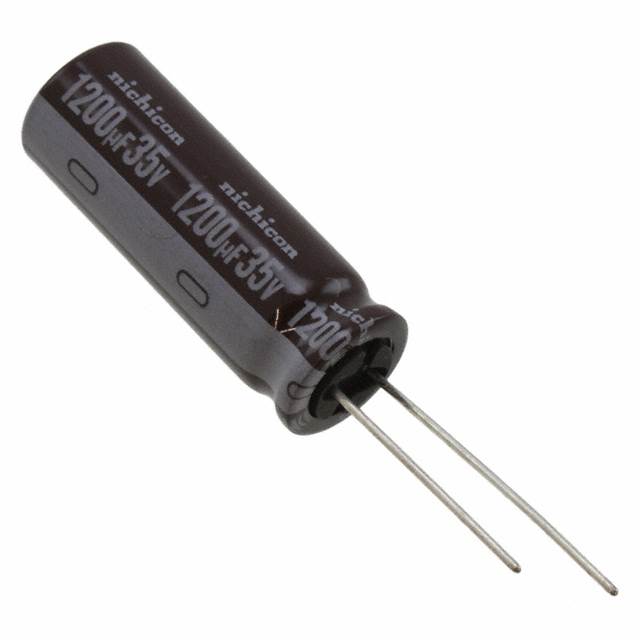

UPM1V122MHD

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Terminal Finish :

Matte Tin (Sn)

Ripple Current :

1.92A

Diameter :

12.5mm

Ripple Current @ High Frequency :

2.23A @ 10kHz

HTS Code :

8532.22.00

Polarization :

Polar

Number of Terminations :

2

Series :

UPM

Termination :

Radial

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Lead Spacing :

0.197 5.00mm

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Ripple Current @ Low Frequency :

1.96A @ 120Hz

Terminal Shape :

Wire

Leakage Current :

1.26mA

Height Seated (Max) :

1.476 37.50mm

Tolerance :

±20%

Size / Dimension :

0.492Dia 12.50mm

Lifetime @ Temp :

5000 Hrs @ 105°C

Life (Hours) :

5000 hours

Radiation Hardening :

No

Tan Delta :

0.14

JESD-609 Code :

e3

Package / Case :

Radial, Can

Impedance :

26mOhm

Mount :

Through Hole

Capacitance :

1200μF

Packaging :

Bulk

Dielectric Material :

ALUMINUM (WET)

Published :

2015

Feature :

GENERAL PURPOSE

Operating Temperature :

-55°C~105°C

Pbfree Code :

yes

Factory Lead Time :

17 Weeks

Voltage - Rated DC :

35V

Height :

35.5mm

Mounting Type :

Through Hole

Applications :

GENERAL PURPOSE

Lead Pitch :

5mm
