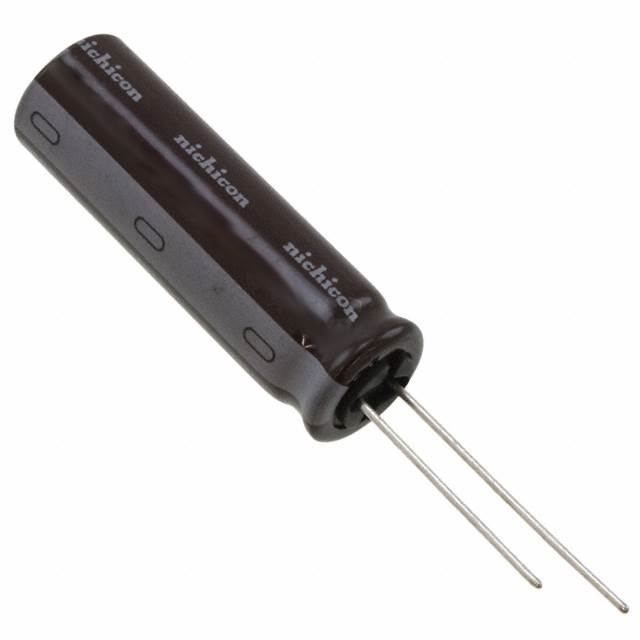

UPM1E222MHD

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Polarization :

Polar

Tolerance :

±20%

Diameter :

12.5mm

Lead Spacing :

0.197 5.00mm

Ripple Current @ High Frequency :

2.46A @ 10kHz

Feature :

GENERAL PURPOSE

Ripple Current @ Low Frequency :

2.21A @ 120Hz

Lifetime @ Temp :

5000 Hrs @ 105°C

Lead Pitch :

5mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Radiation Hardening :

No

Tan Delta :

0.18

REACH SVHC :

No SVHC

ECCN Code :

EAR99

Leakage Current :

1.65mA

Lead Free :

Lead Free

Voltage - Rated AC :

25V

Package / Case :

Radial, Can

Ripple Current :

2.12A

Applications :

GENERAL PURPOSE

Capacitance :

2200µF

Series :

UPM

Height :

40mm

Life (Hours) :

5000 hours

Mounting Type :

Through Hole

Packaging :

Bulk

Number of Terminations :

2

Dissipation Factor :

0.14 %

Size / Dimension :

0.492Dia 12.50mm

Lead Diameter :

800 µm

Factory Lead Time :

17 Weeks

Voltage - Rated DC :

25V

Pbfree Code :

yes

Published :

1998

Number of Pins :

2

RoHS Status :

ROHS3 Compliant

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Height Seated (Max) :

1.654 42.00mm

Mount :

PCB, Through Hole

JESD-609 Code :

e3

Termination :

Radial

Terminal Shape :

Wire

Voltage :

25V

Terminal Finish :

Matte Tin (Sn)

Impedance :

24mOhm

Dielectric Material :

Aluminium

Operating Temperature :

-55°C~105°C
