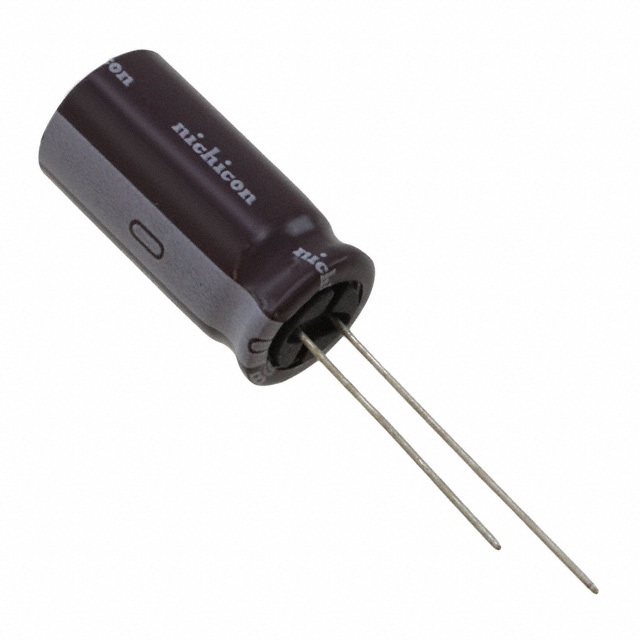

UPB1V102MHD

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Voltage - Rated DC :

35V

Tan Delta :

0.18

Applications :

GENERAL PURPOSE

Ripple Current @ Low Frequency :

570mA @ 120Hz

Tolerance :

±20%

Series :

UPB

HTS Code :

8532.22.00

Moisture Sensitivity Level (MSL) :

Not Applicable

Polarization :

Polar

Package / Case :

Radial, Can

Ripple Current @ High Frequency :

655.5mA @ 100kHz

Leakage Current :

350μA

Dielectric Material :

ALUMINUM (WET)

Operating Temperature :

-40°C~105°C

Feature :

GENERAL PURPOSE

Height Seated (Max) :

1.043 26.50mm

JESD-609 Code :

e3

Number of Terminations :

2

Published :

2009

Lead Spacing :

0.197 5.00mm

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Mount :

Through Hole

Life (Hours) :

7000 hours

Terminal Shape :

Wire

Pbfree Code :

yes

Ripple Current :

570mA

Packing Method :

Tape

Diameter :

12.5mm

Radiation Hardening :

No

Terminal Finish :

Matte Tin (Sn)

Lifetime @ Temp :

7000 Hrs @ 105°C

Mounting Type :

Through Hole

RoHS Status :

RoHS Compliant

Capacitance :

1000µF

Termination :

Radial

Packaging :

Bulk

Size / Dimension :

0.492Dia 12.50mm

Height :

25mm

Lead Pitch :

5mm

ECCN Code :

EAR99
