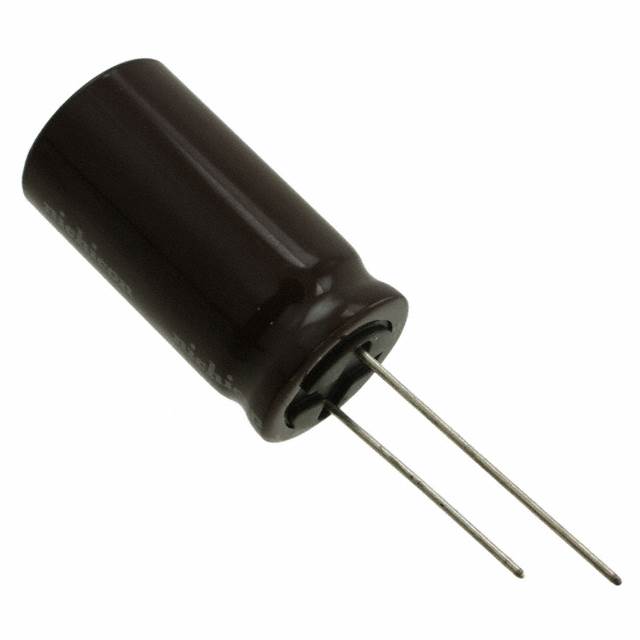

UPA1V272MHD

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Tolerance :

±20%

Ripple Current @ High Frequency :

2.81A @ 100kHz

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Factory Lead Time :

19 Weeks

Applications :

GENERAL PURPOSE

Tan Delta :

0.14

Lifetime @ Temp :

5000 Hrs @ 105°C

JESD-609 Code :

e3

Ripple Current :

2.81A

Pbfree Code :

yes

Size / Dimension :

0.630Dia 16.00mm

Lead Spacing :

0.295 7.50mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Through Hole

Terminal Pitch :

7.5mm

Number of Terminations :

2

Packaging :

Bulk

Lead Pitch :

7.493mm

Packing Method :

Tape

Height Seated (Max) :

1.319 33.50mm

ECCN Code :

EAR99

Published :

2015

Ripple Current @ Low Frequency :

2.389A @ 120Hz

Package / Case :

Radial, Can

HTS Code :

8532.22.00

Mounting Type :

Through Hole

Leakage Current :

2.835mA

Terminal Finish :

Matte Tin (Sn)

Series :

UPA

Terminal Shape :

Wire

RoHS Status :

ROHS3 Compliant

Impedance :

17mOhm

Polarization :

Polar

Life (Hours) :

5000 hours

Diameter :

16mm

Length :

31.5mm

Operating Temperature :

-55°C~105°C

Capacitance :

2700μF

Dielectric Material :

ALUMINUM (WET)

Voltage - Rated DC :

35V

Termination :

Radial
