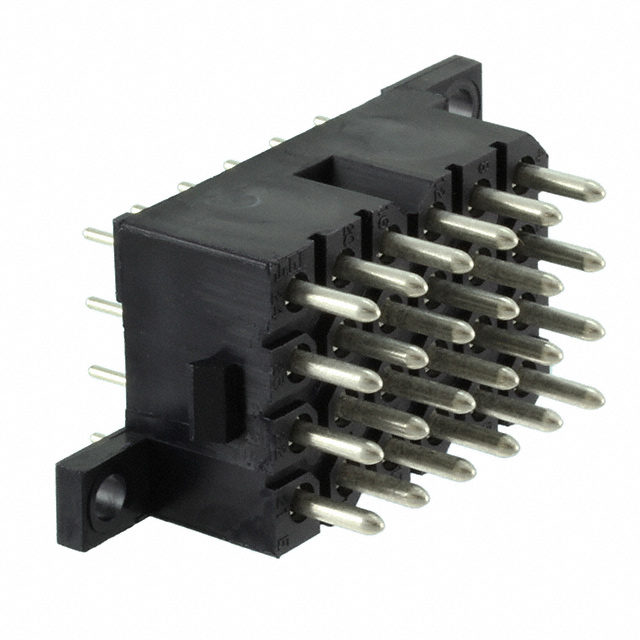

TST24RB01T
Or copy the link below:
- Mfr.Part #
- TST24RB01T
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 24POS 5.08MM
- Stock
- 3,471
- In Stock ：
- 3,471
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- Headers, Male Pins
- Mount :
- Through Hole
- Max Current Rating :
- 13A
- Product Status :
- Active
- Packaging :
- Bulk
- Accessory Type :
- -
- Row Spacing - Mating :
- 0.200 (5.08mm)
- Contact Gender :
- Pin
- Termination Style :
- Solder
- Fastening Type :
- Latch Holder
- REACH SVHC :
- No SVHC
- Style :
- Board to Cable/Wire
- Housing Material :
- Nylon
- Contact Length - Mating :
- -
- RoHS Status :
- RoHS Compliant
- Features :
- Mounting Flange
- Feature :
- Mounting Flange
- Current Rating (Amps) :
- 13A
- Product Category :
- Automotive Connectors
- Contact Material :
- NOT SPECIFIED
- Contact Type :
- Male Pin
- Contact Finish - Post :
- -
- Length :
- 45.6mm
- Base Product Number :
- TST24
- Ingress Protection :
- -
- Gender :
- Male
- Product Type :
- Automotive Connectors
- Pitch - Mating :
- 0.200 5.08mm
- Series :
- Trident Rectangular
- Manufacturer :
- ITT Cannon
- Max Voltage Rating (AC) :
- 250V
- Contact Plating :
- Tin Plated Contacts
- Mounting Style :
- SMD/SMT
- Termination :
- Solder
- Package :
- Bulk
- Insulation Material :
- Polyamide (PA), Nylon
- Published :
- 2011
- Insulation Color :
- Black
- Insulation Height :
- 0.531 13.50mm
- ECCN Code :
- EAR99
- Orientation :
- Straight
- Applications :
- Automotive, Industrial
- Contact Finish Thickness - Post :
- -
- Number of Positions :
- 24
- Mated Stacking Heights :
- -
- Connector Shell Size :
- -
- Material Flammability Rating :
- UL94 V-0
- Product :
- Connectors
- Contact Length - Post :
- 0.224 5.70mm
- Pitch :
- 5.08 mm
- Factory Lead Time :
- 15 Weeks
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Number of Rows :
- 4
- Voltage Rating :
- 250V
- Subcategory :
- Automotive Connectors
- Brand :
- ITT Cannon
- Number of Positions Loaded :
- All
- Contact Finish Thickness - Mating :
- -
- Insulation Resistance :
- 5GOhm
- Operating Temperature :
- -40°C~105°C
- Contact Shape :
- Circular
- Overall Contact Length :
- -
- Shrouding :
- Unshrouded
- Contact Finish - Mating :
- Tin
- Type :
- Receptacle
- Mounting Type :
- Through Hole
- Connector Type :
- Receptacle
- Voltage - Rated DC :
- 250V
- RoHS :
- Details
- Pbfree Code :
- yes
- Depth :
- 21.3mm
- Datasheets
- TST24RB01T
TST24RB01T Documents
Trident Rectangular Series 4-Row Receptacle Solder NOT SPECIFIED Bulk Through Hole Tin Polyamide (PA), Nylon 24-Position Board to Cable/Wire 0.531 13.50mm Height
TST24RB01T Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Trident Rectangular Series, it belongs to the range of products of that series.This device may be used for the purpose of Automotive, Industrial.A number of features make the Mounting Flange feature more powerful.Through Hole represents the mounting point for the part.-40°C~105°C Operating Temperature is the default operating temperature for the device.
TST24RB01T Features
Trident Rectangular series
TST24RB01T Applications
There are a lot of ITT Cannon, LLC
TST24RB01T Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
