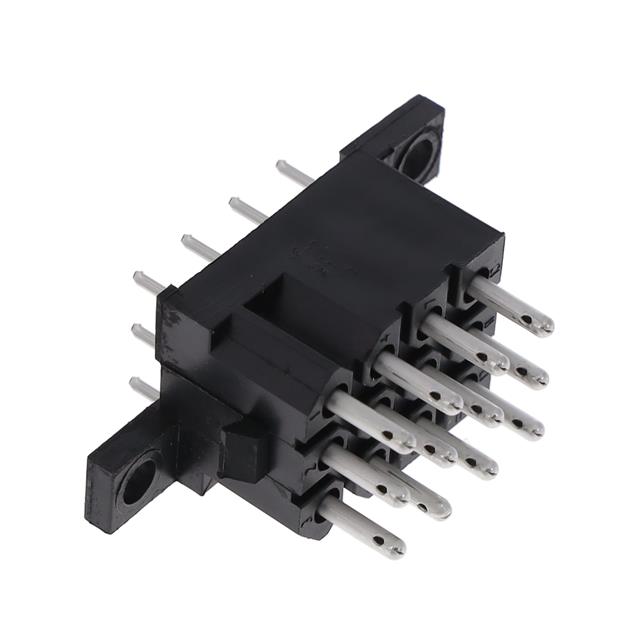

TST12RB05T
Or copy the link below:
- Mfr.Part #
- TST12RB05T
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 12POS 5.08MM
- Stock
- 100
- In Stock ：
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- Headers, Male Pins
- Contact Shape :
- Circular
- Package :
- Bulk
- Current Rating (Amps) :
- 13A
- Length :
- 35.2mm
- Insulation Material :
- Polyamide (PA), Nylon
- Pitch - Mating :
- 0.200 5.08mm
- Feature :
- Mounting Flange
- Factory Lead Time :
- 15 Weeks
- Product :
- Connectors
- Contact Length - Mating :
- --
- Product Category :
- Automotive Connectors
- Contact Finish Thickness - Post :
- --
- Contact Length - Post :
- 0.224 5.70mm
- Manufacturer :
- ITT Cannon
- Number of Positions :
- 12
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Contact Gender :
- Pin
- Fastening Type :
- Latch Holder
- Insulation Resistance :
- 5GOhm
- Mated Stacking Heights :
- --
- Series :
- Trident Rectangular
- Housing Material :
- Nylon
- Mount :
- Through Hole
- Voltage Rating :
- 250V
- Contact Finish - Post :
- --
- Overall Contact Length :
- --
- RoHS Status :
- RoHS Compliant
- RoHS :
- Details
- Contact Plating :
- Tin Plated Contacts
- Pbfree Code :
- yes
- Published :
- 2001
- Features :
- Mounting Flange
- Material Flammability Rating :
- UL94 V-0
- Max Voltage Rating (AC) :
- 250V
- Mounting Type :
- Through Hole
- Type :
- Receptacle
- Packaging :
- Bulk
- Termination Style :
- Solder
- Product Type :
- Automotive Connectors
- Applications :
- Automotive, Industrial
- Number of Positions Loaded :
- All
- Max Current Rating :
- 13A
- Insulation Height :
- 0.531 13.50mm
- Mounting Style :
- SMD/SMT
- Contact Type :
- Male Pin
- Row Spacing - Mating :
- 0.200 (5.08mm)
- Depth :
- 16.2mm
- REACH SVHC :
- No SVHC
- Brand :
- ITT Cannon
- Insulation Color :
- Black
- ECCN Code :
- EAR99
- Contact Finish Thickness - Mating :
- --
- Accessory Type :
- -
- Base Product Number :
- TST12
- Contact Finish - Mating :
- Tin
- Current Rating :
- 13A
- Subcategory :
- Automotive Connectors
- Voltage - Rated DC :
- 250V
- Ingress Protection :
- --
- Shrouding :
- Unshrouded
- Connector Type :
- Receptacle
- Operating Temperature :
- -40°C~105°C
- Orientation :
- Straight
- Number of Rows :
- 4
- Connector Shell Size :
- -
- Gender :
- PLUG
- Contact Material :
- NOT SPECIFIED
- Pitch :
- 5.08 mm
- Product Status :
- Active
- Datasheets
- TST12RB05T
TST12RB05T Documents
Trident Rectangular Series 4-Row Receptacle Solder NOT SPECIFIED Bulk Through Hole Tin Polyamide (PA), Nylon 12-Position Board to Cable/Wire 0.531 13.50mm Height
TST12RB05T Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Trident Rectangular Series, it belongs to the range of products of that series.This device may be used for the purpose of Automotive, Industrial.A number of features make the Mounting Flange feature more powerful.Through Hole represents the mounting point for the part.-40°C~105°C Operating Temperature is the default operating temperature for the device.
TST12RB05T Features
Trident Rectangular series
TST12RB05T Applications
There are a lot of ITT Cannon, LLC
TST12RB05T Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
