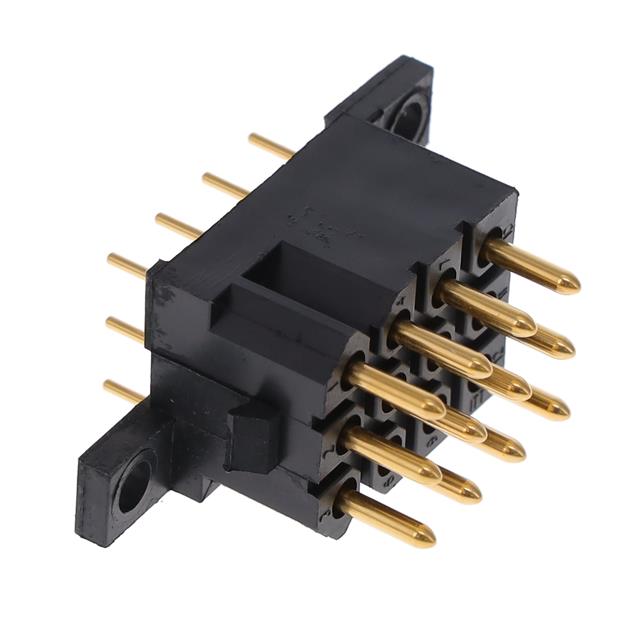

TST12RB01Z
Or copy the link below:
- Mfr.Part #
- TST12RB01Z
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 12POS 5.08MM
- Stock
- 96
- In Stock ：
- 96
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- Headers, Male Pins
- Termination :
- Solder
- Row Spacing - Mating :
- 0.200 (5.08mm)
- Fastening Type :
- Latch Holder
- Ingress Protection :
- --
- Mount :
- Through Hole
- Operating Temperature :
- -40°C~105°C
- Product Status :
- Active
- Style :
- Board to Cable/Wire
- Manufacturer :
- ITT Cannon
- Contact Material :
- --
- Contact Length - Post :
- 0.224 5.70mm
- Factory Lead Time :
- 11 Weeks
- Product Category :
- Automotive Connectors
- Length :
- 35.2mm
- Housing Material :
- Nylon
- Packaging :
- Bulk
- Mated Stacking Heights :
- --
- Max Voltage Rating (AC) :
- 250V
- Insulation Height :
- 0.531 13.50mm
- Number of Positions :
- 12
- Number of Positions Loaded :
- All
- RoHS :
- Details
- Material Flammability Rating :
- UL94 V-0
- Depth :
- 16.2mm
- Contact Finish Thickness - Post :
- --
- Package :
- Bulk
- Orientation :
- Straight
- Feature :
- Mounting Flange
- Contact Type :
- Male Pin
- Brand :
- ITT Cannon
- Current Rating (Amps) :
- 13A
- Voltage - Rated :
- 250V
- Insulation Color :
- Black
- RoHS Status :
- RoHS Compliant
- ECCN Code :
- EAR99
- Connector Type :
- Receptacle
- Contact Length - Mating :
- --
- Contact Shape :
- Circular
- Voltage Rating :
- 250V
- Base Product Number :
- TST12
- Shrouding :
- Unshrouded
- Product Type :
- Automotive Connectors
- Series :
- Trident Rectangular
- Radiation Hardening :
- No
- Overall Contact Length :
- --
- Current Rating :
- 13A
- Features :
- Mounting Flange
- Pitch - Mating :
- 0.200 5.08mm
- Contact Finish - Mating :
- Gold
- Applications :
- Automotive, Industrial
- Number of Rows :
- 4
- Insulation Material :
- Polyamide (PA), Nylon
- Subcategory :
- Automotive Connectors
- Contact Finish - Post :
- --
- Contact Finish Thickness - Mating :
- Flash
- Mounting Type :
- Through Hole
- Max Current Rating :
- 13A
- Datasheets
- TST12RB01Z
TST12RB01Z Documents
Trident Rectangular Series 4-Row Receptacle Solder -- Bulk Through Hole Gold Polyamide (PA), Nylon 12-Position Board to Cable/Wire 0.531 13.50mm Height
TST12RB01Z Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Trident Rectangular Series.There are a variety of possible applications for this device, including Automotive, Industrial.Several benefits come from the Mounting Flange feature.There is a mounting hole at Through Hole.Devices operate at -40°C~105°C operating temperatures.
TST12RB01Z Features
Trident Rectangular series
TST12RB01Z Applications
There are a lot of ITT Cannon, LLC
TST12RB01Z Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
