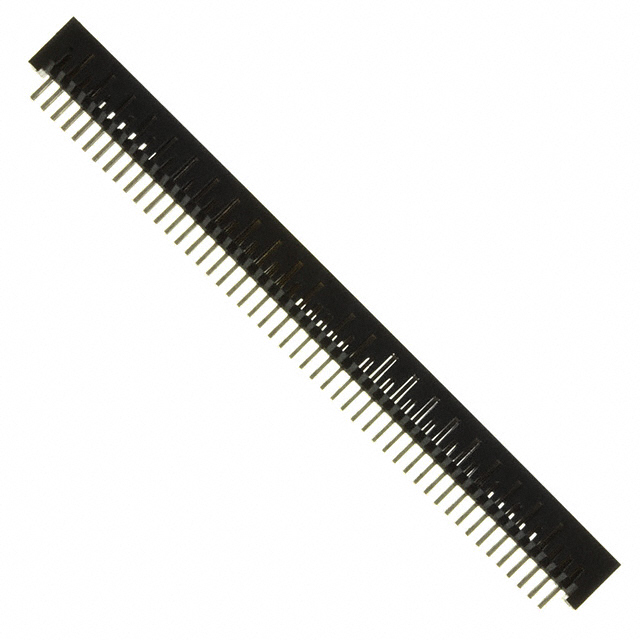

    Images are for reference only.

    Delivery：

    Payment：

    TFML-150-01-S-D

    Share

    Or copy the link below:

    Mfr.Part #
    TFML-150-01-S-D
    Manufacturer
    Samtec, Inc.
    Package / Case
    Datasheet
    Download
    Description
    CONN HEADER VERT 100POS 1.27MM
    Stock
    49,703
    In Stock ：
    49,703

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Samtec, Inc.
    Product Category :
    Headers, Male Pins
    Number of Positions Loaded :
    All
    Option :
    GENERAL PURPOSE
    Pitch - Mating :
    0.050 1.27mm
    Radiation Hardening :
    No
    Operating Temperature :
    -55°C~125°C
    Current Rating :
    5A
    Mounting Type :
    Through Hole
    Insulation Material :
    Liquid Crystal Polymer (LCP)
    Voltage - Rated :
    350V
    Contact Finish - Post :
    Tin
    Mixed Contacts :
    No
    Published :
    2005
    DIN Conformance :
    No
    Number of Rows :
    2
    Contact Finish - Mating :
    Gold
    ECCN Code :
    EAR99
    Mount :
    Through Hole
    Polarization Key :
    POLARIZED HOUSING
    Fastening Type :
    Friction Lock
    Material Flammability Rating :
    UL94 V-0
    Number of Positions :
    100
    Gender :
    Male
    Housing Material :
    Plastic
    MIL Conformance :
    No
    Lead Free :
    Lead Free
    Filter Feature :
    No
    RoHS Status :
    ROHS3 Compliant
    Orientation :
    Straight
    IEC Conformance :
    No
    Contact Shape :
    Square
    Series :
    Tiger Eye™ TFML
    Contact Length - Post :
    0.075 1.91mm
    Mating Contact Pitch :
    0.05 inch
    Termination :
    Solder
    Reliability :
    COMMERCIAL
    PCB Contact Pattern :
    RECTANGULAR
    Number of Conductors :
    ONE
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Voltage - Rated AC :
    350V
    Packaging :
    Tube
    Style :
    Board to Board or Cable
    Number Of PCB Rows :
    2
    HTS Code :
    8536.69.40.40
    Contact Length - Mating :
    0.134 3.39mm
    Contact Material :
    Phosphor Bronze
    Pbfree Code :
    yes
    Rated Current (Signal) :
    5A
    Contact Type :
    Male Pin
    Insulation Height :
    0.220 5.60mm
    Connector Type :
    Header
    REACH SVHC :
    No SVHC
    Shrouding :
    Shrouded - 4 Wall
    Plating Thickness :
    30μin
    Factory Lead Time :
    3 Weeks
    Housing Color :
    Black
    Row Spacing - Mating :
    0.050 (1.27mm)
    Reference Standard :
    UL, CSA
    Contact Finish Thickness - Mating :
    30.0μin 0.76μm
    Datasheets
    TFML-150-01-S-D
    Introducing Headers, Male Pins Samtec, Inc. TFML-150-01-S-D from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature：-55°C~125°C, Mounting Type：Through Hole, TFML-150-01-S-D pinout, TFML-150-01-S-D datasheet PDF, TFML-150-01-S-D amp .Beyond Headers, Male Pins Samtec, Inc. TFML-150-01-S-D ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

    Samtec, Inc. TFML-150-01-S-D


    Tiger Eye™ TFML Series 2-Row Header Solder Phosphor Bronze Tube Through Hole Gold Liquid Crystal Polymer (LCP) 100-Position Board to Board or Cable 0.220 5.60mm Height

    TFML-150-01-S-D Overview


    It comes in a Header package.Through Hole is the mounting type of the device.We pack the product in a Tube case.This is from the Tiger Eye™ TFML Series.This part is mounted by Through Hole. -55°C~125°C Operating Temperature is the default.

    TFML-150-01-S-D Features


    Tiger Eye™ TFML series


    TFML-150-01-S-D Applications


    There are a lot of Samtec Inc.
    TFML-150-01-S-D Rectangular Connectors applications.


    • Embedded systems
    • Datacom
    • Communication
    • Medical technology
    • Military Technology
    • Measuring & Control Technology
    • Instrumentation
    • Automotive Electronics
    • Telecommunications
    • Data Technology
